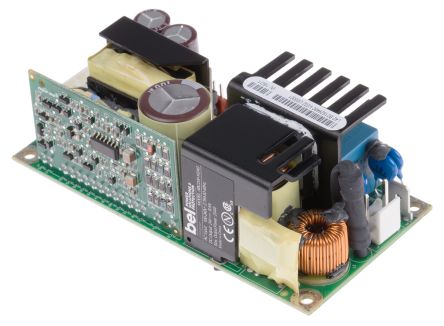

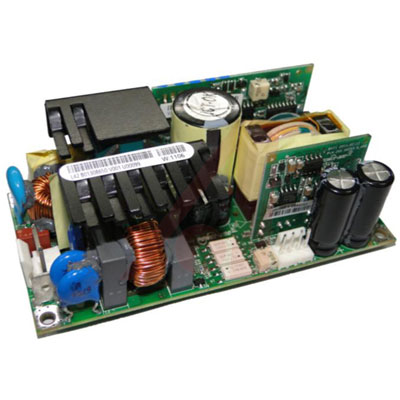

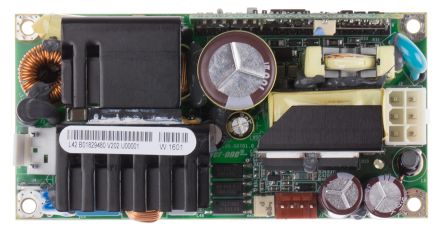

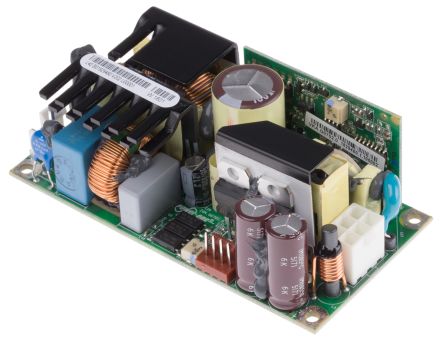

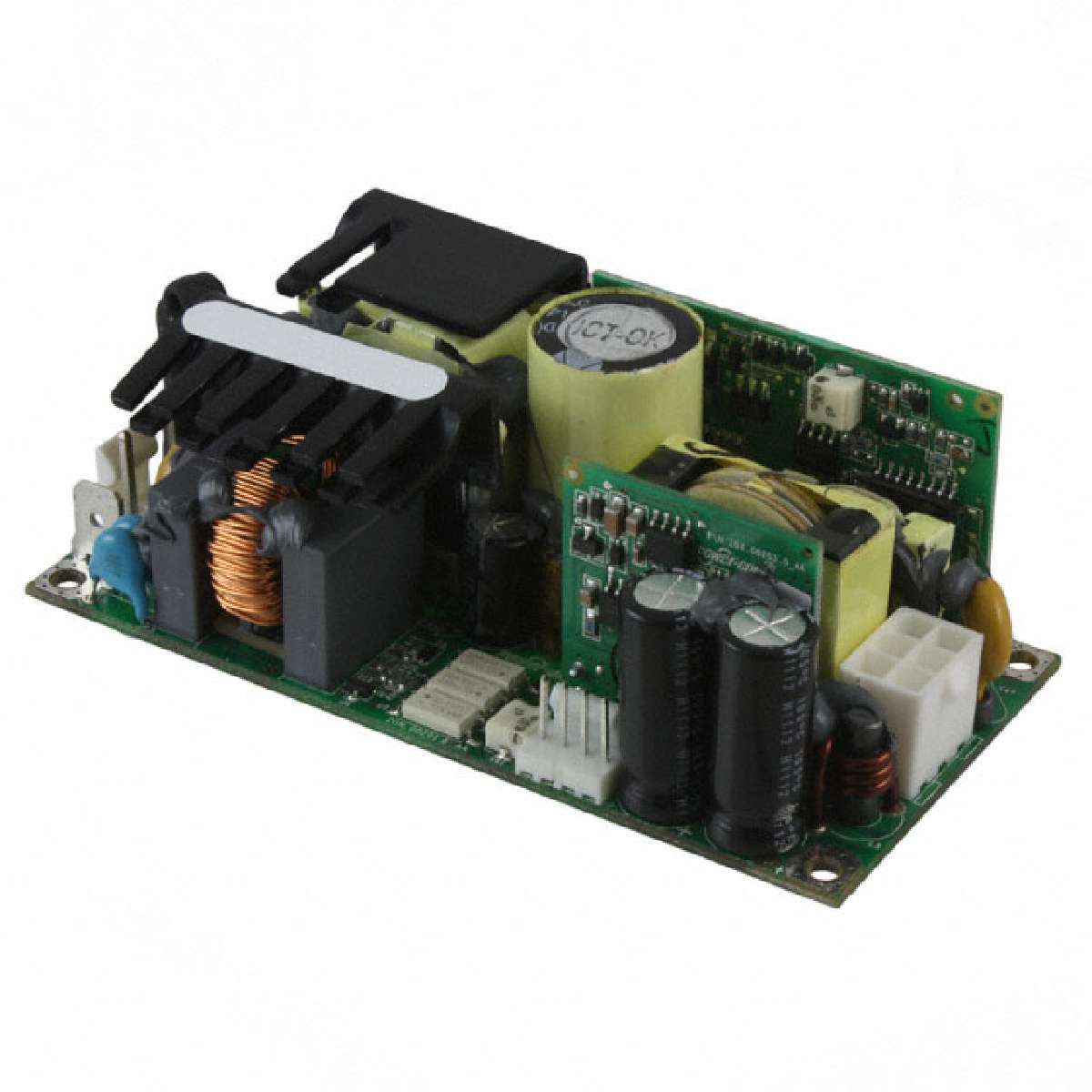

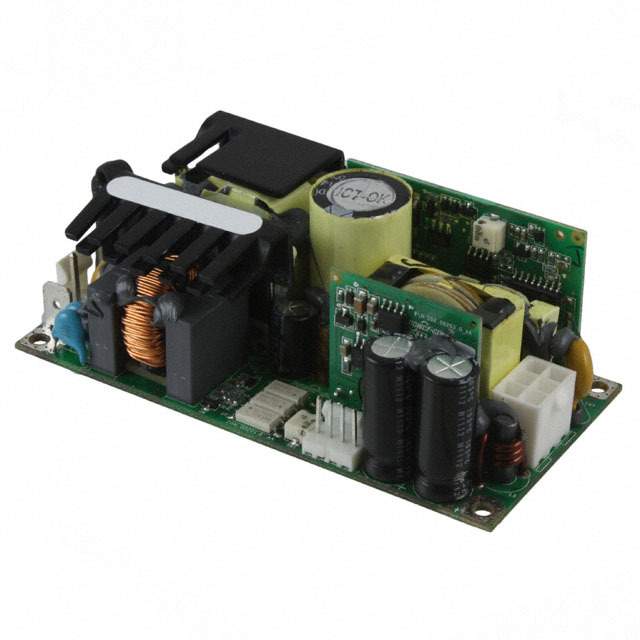

Power One 200W Switch Mode AC-DC Power Supply - ABC200-10XXG Series
ABC200-10XXG series 200W switch mode embedded AC-DC power supplies with a compact design and universal AC voltage input range. These 200W switch mode AC-DC power supplies have a high power density and incorporate boundary conduction mode PFC converter and soft-switching LLC converter resulting in increased system reliability and efficiency of up to 91%. Typical applications for these 200W switch mode AC-DC power supplies include telecommunication, datacommunication and industrial equipment.
Universal AC input voltage of 90 to 264 Vac
Active power factor correction
Power Good signal
High power density of 15 W/in3
High efficiency of up to 91%
Over temperature, output voltage, over current and short ciruit protection
Compact size: 2.0 W x 4.0 L x 1.5 H inches
EMC compliance: Class A, EN55022
Harmonic Emissions: Class A: IEC61000-3-2
### 注
Derate power above 50°C
### 认可
CSA
### 标准
UL 60950-1 Second Edition, CSA-C22.2 No. 60950-1-03 Second Edition, IEC 60950-1:2005, EN 60950-1:2006, CE Mark for LVD, CB Approval
额定功率 200 W
输出接口数 1
输出电压 24 V
输出电流 8.5 A
输出功率 200 W
隔离电压 4.2 kV
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 8.5 A
输入电流Min 2.75 Arms
输出功率Max 204 W
额定功率Max 200 W
工作温度Max 50 ℃
工作温度Min -10 ℃
输入电压 90VAC ~ 264VAC
引脚数 13
封装 开放式
长度 101.6 mm
宽度 50.8 mm
高度 1.5 in
封装 开放式
重量 200 g
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409530
