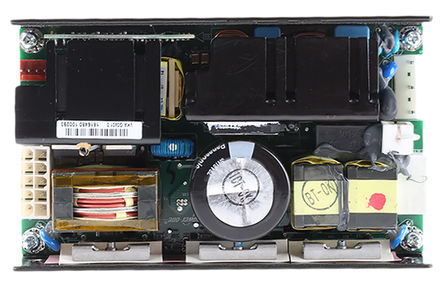

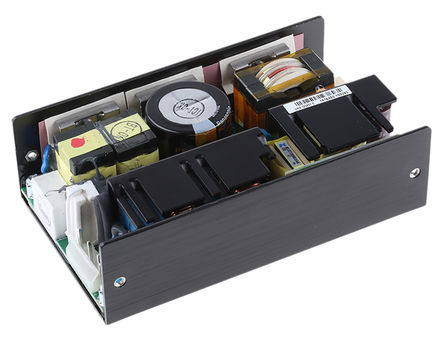

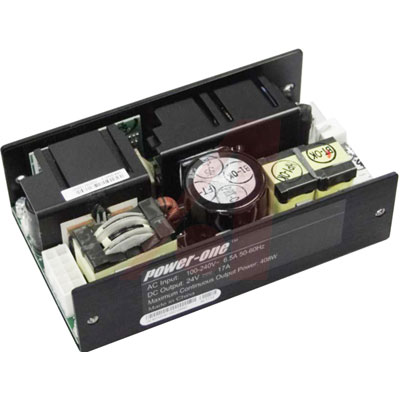

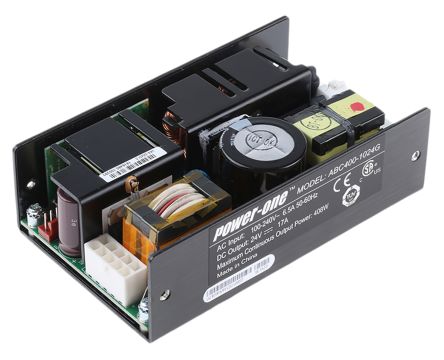

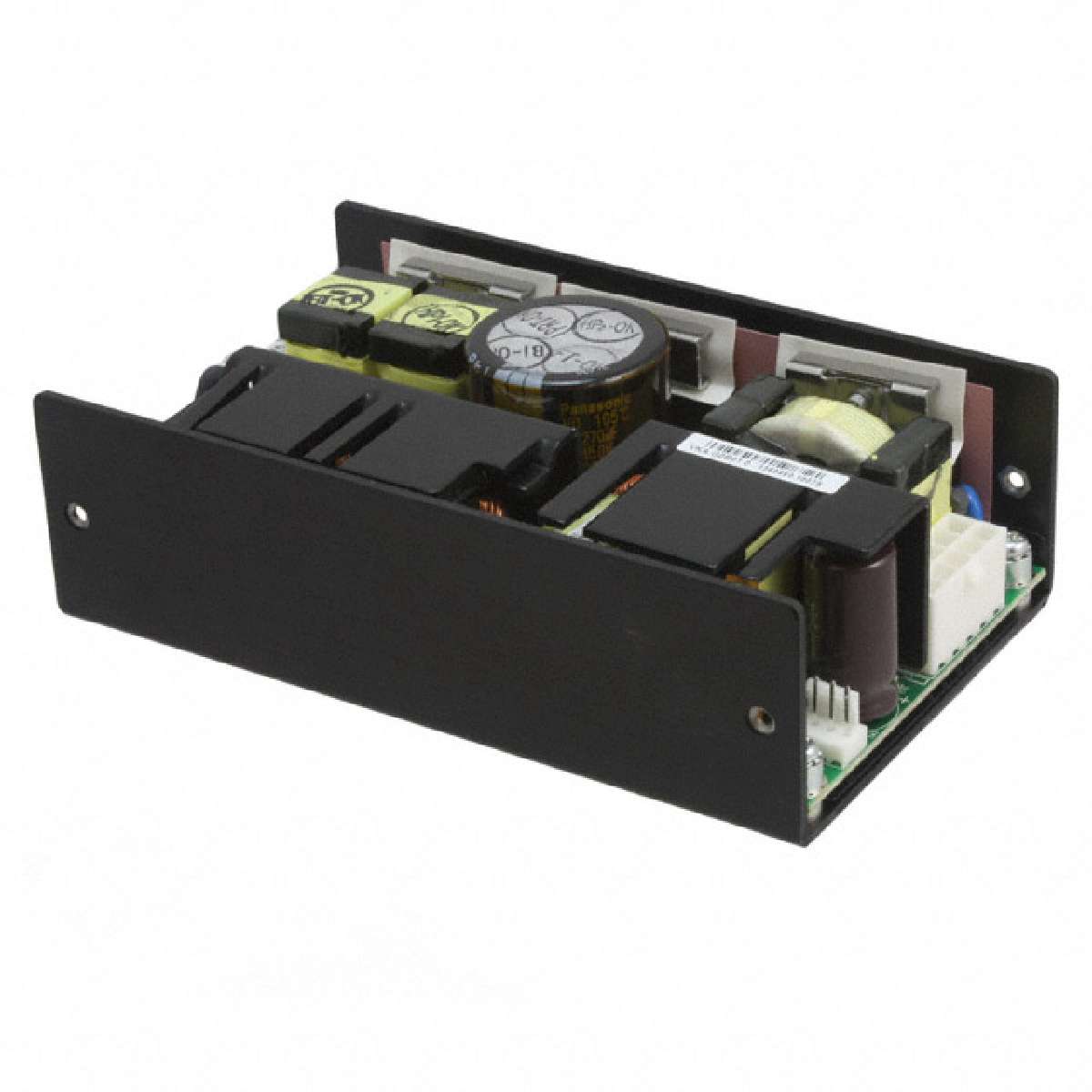

Power One 400W Switch Mode AC-DC Power Supply - ABC400-10XXG Series
ABC400-10XXG series 400W switch mode embedded AC-DC power supplies with a compact design and universal AC voltage input range. These 400W switch mode AC-DC power supplies have a high power density and incorporate interleaved transition mode PFC converter and two-FET forward converter resulting in increased system reliability and efficiency of up to 91%. Typical applications for these 400W switch mode AC-DC power supplies include telecommunication, datacommunication and industrial equipment.
Universal AC input voltage of 90 to 264 Vac
Active power factor correction
Power Good signal
High power density of 16 W/in3
High efficiency of up to 91%
Over temperature, output voltage, over current and short ciruit protection
Compact size: 3.0 W x 1.5 L x 5.0 H inches
EMC compliance: Class A, EN55022 FCC Part 15, Sub Part-B
Harmonic Emissions: Class A: IEC61000-3-2
### 注
Derate power above 50°C
### 认可
CSA
### 标准
UL 60950-1 Second Edition, CSA-C22.2 No. 60950-1-03 Second Edition, IEC 60950-1:2005, EN 60950-1:2006, CE Mark for LVD, CB Approval
额定功率 400 W
输出接口数 1
输出电压 24 V
输出电流 17 A
输出功率 400 W
隔离电压 4.242 kV
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 17 A
输入电流Min 6.5 Arms
输出功率Max 408 W
额定功率Max 360 W
工作温度Max 50 ℃
工作温度Min -10 ℃
输入电压 90VAC ~ 264VAC
引脚数 11
封装 开放式
长度 127 mm
宽度 76.2 mm
高度 1.5 in
封装 开放式
重量 500 g
工作温度 -10℃ ~ 70℃
产品生命周期 Unknown
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409530
