双路高速PECL比较器 Dual High Speed PECL Comparators
Compare two input voltages in your electronic circuit with this comparator circuit from Analog Devices and output a digital or binary signal indicating the larger input. Its maximum power dissipation is 250 mW. It has a complementary output. Its typical dual supply voltage is -5.2|5 V, with a minimum of -4.96|4.75 V and maximum of -5.45|5.25 V. This comparator has a temperature range of -40 °C to 85 °C. It has 2 channels per chip. Its typical PSRR is 85 dB. This device uses dual power supplies.
输出电流 30 mA
供电电流 3.2 mA
电路数 2
通道数 2
耗散功率 250 W
共模抑制比 80 dB
输入补偿电压 2 mV
输入偏置电流 10000 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
电源电压Max 5 V
电源电压Min 5.2 V
安装方式 Surface Mount
引脚数 20

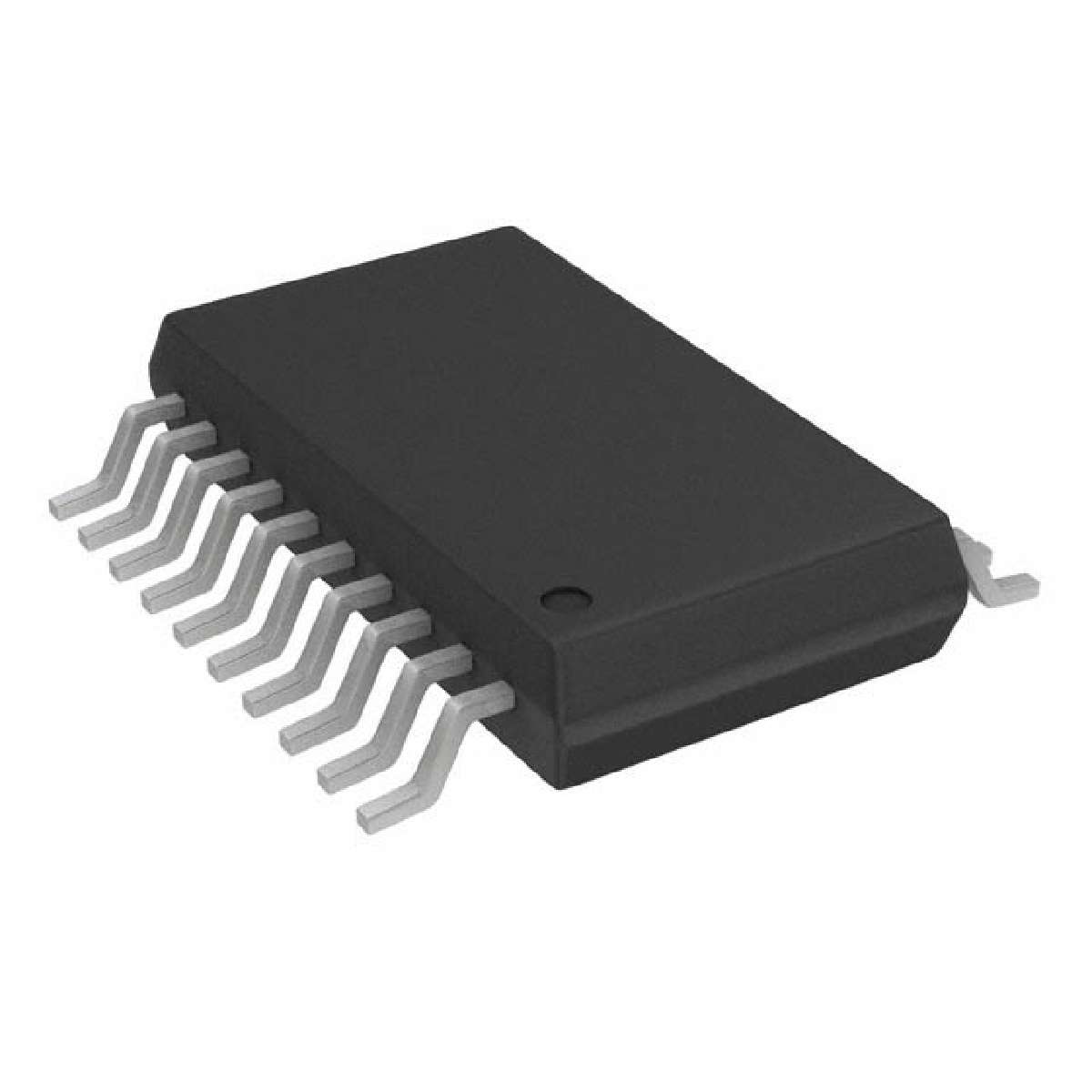

封装 QSOP-20
长度 8.66 mm
宽度 3.91 mm
高度 1.65 mm
封装 QSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADCMP562BRQ ADI 亚德诺 | 当前型号 | 当前型号 |
ADCMP562BRQZ 亚德诺 | 类似代替 | ADCMP562BRQ和ADCMP562BRQZ的区别 |
