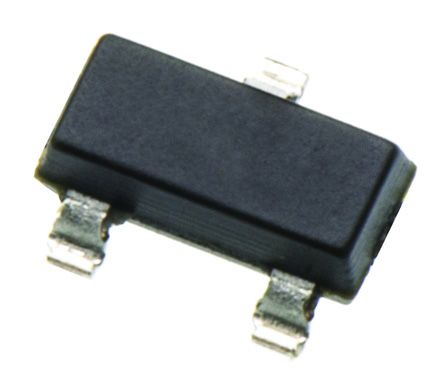

INFINEON BAR141E6327HTSA1 二极管, 射频/PIN, 双系列, 12 ohm, 100 V, SOT-23, 3引脚, 0.5 pF
PIN ，
多种 PIN 二极管，适用于射频开关和衰减器应用。
立创商城:
BAR141E6327HTSA1
得捷:
RF DIODE PIN 100V 250MW SOT23-3
欧时:
Infineon BAR141E6327HTSA1 PIN 二极管, Ifor=140mA, Vrev=100V, 3引脚 SOT-23封装
贸泽:
PIN Diodes PIN 100 V 140 mA
e络盟:
二极管, 射频/PIN, 双系列, 12 ohm, 100 V, SOT-23, 3引脚, 0.5 pF
艾睿:
If you need to have a user inputted password for your system, use an attenuator and switch BAR141E6327HTSA1 PIN diode from Infineon Technologies. Its maximum power dissipation is 250 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This PIN diode attenuator has a minimum operating temperature of -55 °C and a maximum of 125 °C. It is made in a dual series configuration.
Chip1Stop:
Diode PIN Attenuator/Switch 100V 3-Pin SOT-23 T/R
Verical:
PIN Diode Attenuator/Switch 100V 140mA Automotive 3-Pin SOT-23 T/R
Newark:
# INFINEON BAR141E6327HTSA1 RF / Pin Diode, Dual Series, 12 ohm, 100 V, SOT-23, 3 Pin, 0.5 pF
额定电压DC 100 V
额定电流 140 mA
电容 0.5 pF
输出电流 ≤140 mA
正向电压 1.25 V
耗散功率 0.25 W
正向电流 140 mA
击穿电压 100 V
正向电压Max 1.25 V
正向电流Max 140 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 1.15 mm
封装 SOT-23-3
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 射频通信, 工业, RF Communications, Power Management, High Speed Data Networks, Industrial, Wireless Communications, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
