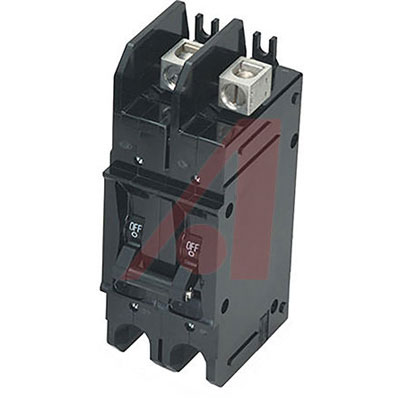

Circuit Breaker; Hyd/Mag; Handle; 2P; 50/60HzLong; 50A; Box Wire Connector; Dual Legend
The E-Series hydraulic/magnetic circuit breaker is ideally suited for higher current and voltage applications. It is UL listed and CSA certified for branch circuit protection, which does not require a fuse back up. It is also UL recognized and CSA certified as a supplementary protector and as a manual motor controller.
Allied Electronics:
Circuit Breaker; Hyd/Mag; Handle; 2P; 50/60HzLong; 50A; Box Wire Connector; Dual Legend
额定电流 50 A
额定电压 600 VAC
Actuator Type Toggle
Current Rating 50 A
Dimensions 3.6 L x 2.092 W x 5.125 H In
Mounting Type Chassis/Rear Mount
Number of Poles 2 Pole
Overload Magnetic/Hydraulic
Primary Type Miniature Circuit Breaker
Series E Series
Standards CSA Accepted | UL1077 | UL489 | UL508 Recognized
Termination Box Lug
Time, Trip Long Delay
Type UL489 | UL508 | UL1077
Voltage Rating 600 VAC | 125 VDC
RoHS标准 RoHS Compliant
