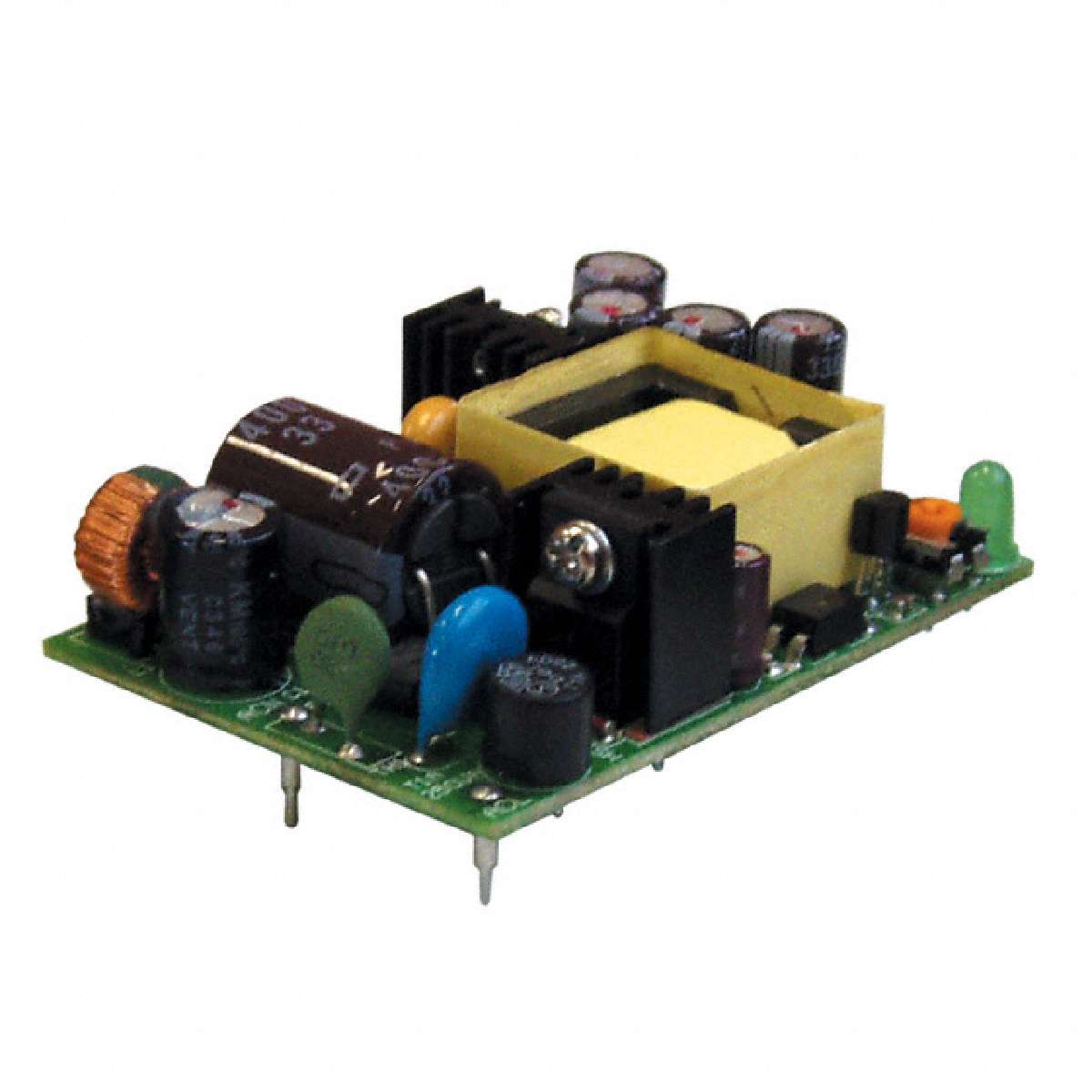

AC-DC Power Supply Single-OUT 5V 1A 5W 5Pin
Safely convert alternating currents into direct currents that your electronic devices can make use of with this AC to DC power supply from -Lambda. It has a voltage of 5 V and maximum output power of 5 W. This part"s single output can handle a current up to 1 A. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C.
额定功率 5 W
输出接口数 1
输出电压 5 V
输出电流 1 A
输出功率 5 W
隔离电压 3 kVAC
输入电压DC Max 370 V
输入电压DC Min 110 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 1 A
输入电流Min 0.13 A
输出功率Max 5 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC
安装方式 Through Hole
引脚数 5
封装 DIP-4
长度 2.17 in
宽度 1.28 in
高度 0.83 in
封装 DIP-4
重量 29.03 g
工作温度 0℃ ~ 70℃
产品生命周期 Active
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KPSA55 TDK 东电化 | 当前型号 | 当前型号 |
KWS5-5 东电化 | 类似代替 | KPSA55和KWS5-5的区别 |
