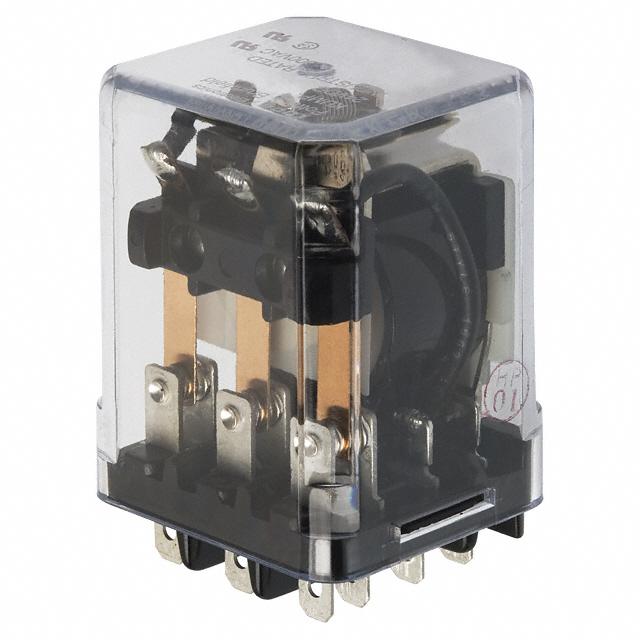

TE CONNECTIVITY / POTTER & BRUMFIELD KUMP-11A18-24 功率继电器
Electromechanical Relay 24VAC 72Ohm 15A DPDT38.89x35.71x55.55mm Plain Case Industrial Relay
Product Highlights
KUMP Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 15 Amps.
Monostable Coil Magnetic System
Input Voltage = 24 VAC
得捷:
RELAY GEN PURPOSE DPDT 15A 24V
贸泽:
通用继电器 DP PLN QC/SLDR 24VAC
e络盟:
继电器, DPDT, 277VAC, 32VDC, 15A
艾睿:
Power Relay 24VAC 15A DPDT38.9x35.7x50mm Socket
Chip1Stop:
Electromechanical Relay DPDT 15A 24VAC 72Ohm Plain Case
Verical:
Electromechanical Relay 24VAC 72Ohm 15A DPDT 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
MASTER:
Power Relay 24VAC 15A DPDT38.9x35.7x50mm Socket
Online Components:
Electromechanical Relay 24VAC 72Ohm 15A DPDT38.89x35.71x55.55mm Plain Case Industrial Relay
Electro Sonic:
Power Relay 24VAC 15A DPDT38.9x35.7x50mm Socket
额定电压AC 277 V
触点类型 DPDT
功耗 2.7 VA
触点额定电流 15 A
线圈电压 24 VAC
线圈电流 115 mA
线圈电压AC 24 V
线圈电阻 72 Ω
载流 15.0 A
额定电流Max 15 A
线圈功率 2.8 VA
工作温度Max 55 ℃
工作温度Min -45 ℃
额定电压AC Max 277 V
安装方式 PCB, Quick Connect
引脚数 8
长度 38.89 mm
宽度 48.41 mm
高度 55.55 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 55℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
