Fitting; 1/8in.; 10-32 UNF; UNF; 16.7mm; 1.0 MPa Max.; White; -5℃; 60
* Operating Fluid: Air, Water
* Material: Nickel Plated Brass
* Accepts Nylon and Polyurethane Tubes
* Has Large Retaining Force
* The Use of a Special Profile Ensures Sealing and Reduces Resistance When the Tube Is Inserted
* When the Fitting Is Removed from the Tubing, the Chuck and Collet Are Released, Thus Preventing Them from Biting into the Tube Excessively
* Unique Shape Allows Easy Tube Release
* The Body and Threaded Portion Can Turn Independently
* Standard with Preapplied Thread Sealant
颜色 White
重量 2 g
Brand/Series KJ Series
Material, Body Stainless Steel
Pressure, Operating 1.0 MPa Max.

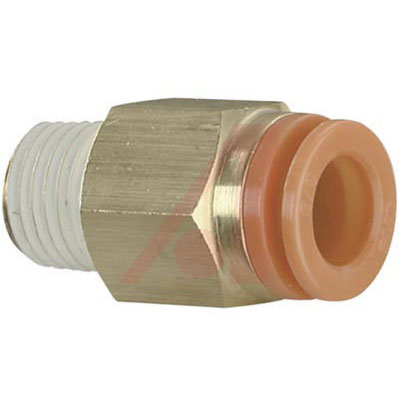

Product Header Miniature One-Touch Fittings
Proof Pressure 3
Size, Port 10-32 UNF
Size, Tube 1/8 "
Standards UL Listed, CSA Certified
Temperature, Ambient, Maximum 60 °C
Temperature, Ambient, Minimum -5 °C
Thread Type UNF
Type Male
Weight 2 g
RoHS标准 RoHS Compliant
