STMICROELECTRONICS L7812ACD2T-TR 线性稳压器, 固定, 7812, 精准, 19V至35V输入, 12V和1.5A输出, TO-263-3
L78 系列线性稳压器,STMicroelectronics
STMicroelectronics L78 系列固定输出稳压器在电子行业内的广泛应用中非常有用。 这些三接线端子正向线性稳压器通过提供本地卡上调节,可消除与单点稳压相关的问题。 ST 稳压器 IC 可在固定输出电压(范围可为 5 V 至 24 V)时提供最大 1.5A。 该稳压器提供安全区保护,外加内部热关机和电流限制。
固定输出电压系列,输出电流最大 1.5A
热敏过载保护、短路保护
输出转换安全工作区 SOA 保护
欧时:
STMicroelectronics L78xx 系列 L7812ACD2T-TR 线性稳压器, 最高 35 V输入, 12 V输出, ±2%精确度
立创商城:
正 Vin=35V Vout=12V 1.5A 60dB@120Hz
得捷:
IC REG LINEAR 12V 1.5A D2PAK
贸泽:
线性稳压器 12V 1.0A Positive
艾睿:
Control the voltage level of your circuit with this standard L7812ACD2T-TR linear regulator from STMicroelectronics. Its typical dropout voltage at current is 2@1A V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Using the part will provide the power your application needs by requiring a voltage not exceeding 35 V. With a fixed output that has a voltage of 12 V, this is power management at its best. A load regulation of 100mV and line regulation of 120mV is necessary for providing a constant voltage level at your output. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. Its polarity is positive.
安富利:
Standard Regulator Pos 12V 1.5A 3-Pin2+Tab D2PAK T/R
富昌:
L78 系列 12 V D2PAK 高精度 1 A 稳压器
Chip1Stop:
Standard Regulator Pos 12V 1.5A 3-Pin2+Tab D2PAK T/R
TME:
Voltage regulator; linear, fixed; 12V; 1.5A; D2PAK; SMD
Verical:
Standard Regulator Pos 12V 1.5A 3-Pin2+Tab D2PAK T/R
Newark:
# STMICROELECTRONICS L7812ACD2T-TR Linear Voltage Regulator, 7812, Fixed, Precision, 19V To 35V In, 12V And 1.5A Out, TO-263-3
DeviceMart:
IC REG LDO 12V 1.5A D2PAK
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 12V 1.5A D2PAK
电源电压DC 35.0V max
输出接口数 1
输入电压DC 27.0V max
输出电压 12 V
输出电流 1.5 A
针脚数 3
静态电流 4.4 mA
跌落电压 2V @1A
输入电压Max 35 V
输入电压Min 19 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±2 %
输出通道数 1
输入电压 ≤35 V
安装方式 Surface Mount
引脚数 3

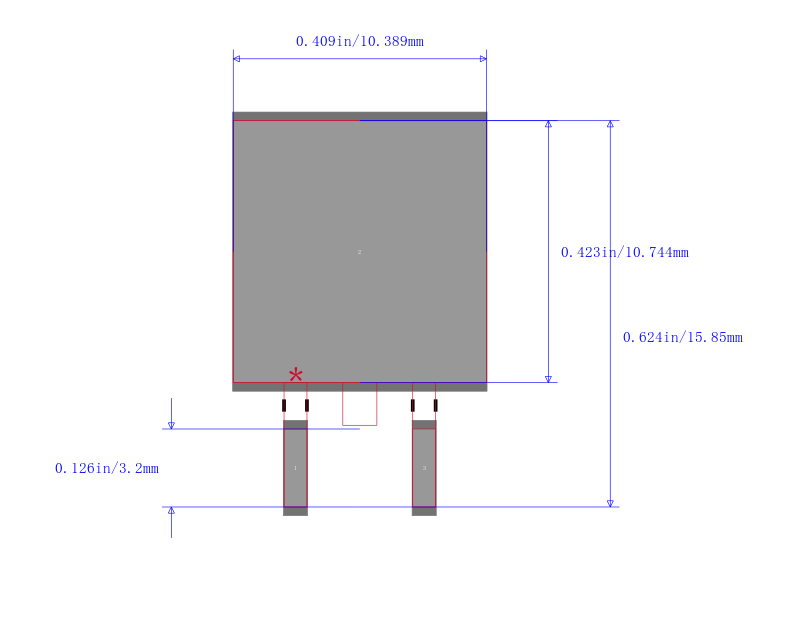

封装 TO-263-3
长度 10.4 mm
宽度 9.35 mm
高度 4.6 mm
封装 TO-263-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L7812ACD2T-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L7812ABD2T-TR 意法半导体 | 类似代替 | L7812ACD2T-TR和L7812ABD2T-TR的区别 |
L7812ABD2T 意法半导体 | 类似代替 | L7812ACD2T-TR和L7812ABD2T的区别 |
L7812ACD2T 意法半导体 | 类似代替 | L7812ACD2T-TR和L7812ACD2T的区别 |
