TEXAS INSTRUMENTS LM5045MH/NOPB 控制器, 全桥, 100V-14V电源, 2 MHz, TSSOP-28
The is a Pulse Width Modulated PWM Controller contains all of the features necessary to implement full-bridge topology power converters using either current-mode or voltage mode control. This device is intended to operate on the primary side of an isolated DC-DC converter with input voltage up to 100V. This highly integrated controller-driver provides dual 2A high-side and low-side gate drivers for the four external bridge MOSFETs plus control signals for the secondary-side synchronous rectifier MOSFETs. External resistors program the leading and trailing edge dead-time between the main and synchronous rectifier control signals. Intelligent start-up of the synchronous rectifiers allows monotonic turn-on of the power converter even with pre-bias load conditions. Additional features include cycle-by-cycle current limiting, hiccup mode restart, programmable soft-start, synchronous rectifier soft-start and a 2MHz capable oscillator.
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
频率 2 MHz
电源电压DC 14.0V min
输入电压DC 100 V
输出电流 2000 mA
供电电流 4.6 mA

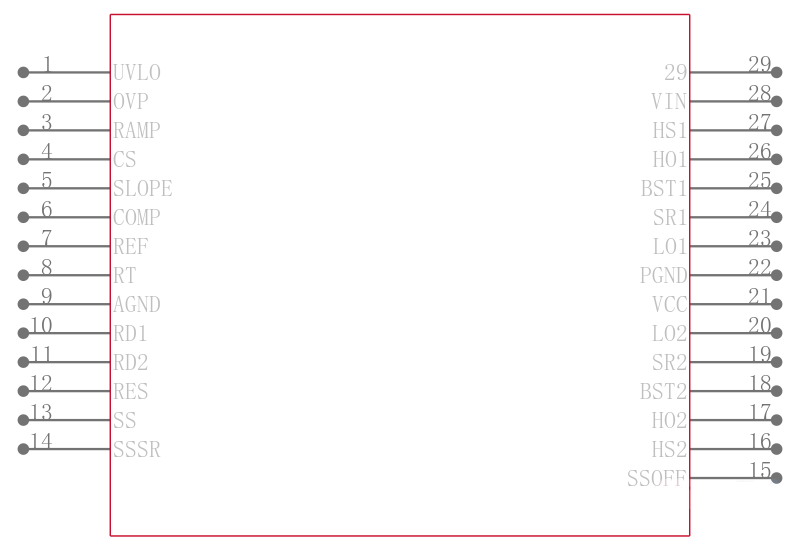

针脚数 28
上升时间 60 ns
开关频率 2MHz MAX
拓扑结构 Full-Bridge, Half-Bridge, Push-Pull
占空比 0 %
最大占空比 0 %
下降时间 20 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 100 V
电源电压Min 14 V
输入电压 100 V
安装方式 Surface Mount
引脚数 28

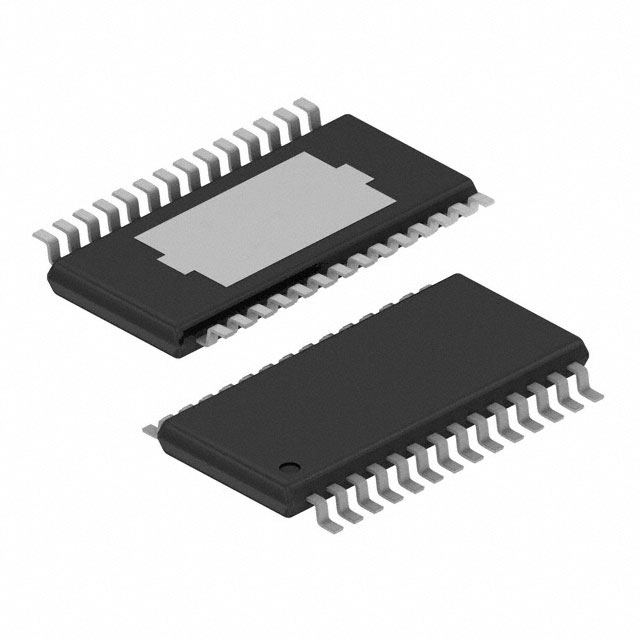

封装 TSSOP-28
封装 TSSOP-28
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Each
制造应用 军用与航空, 车用, 通信与网络, 国防, 消费电子产品, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5045MH/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5045MHX/NOPB 德州仪器 | 功能相似 | LM5045MH/NOPB和LM5045MHX/NOPB的区别 |
