LPV 系列### 运算放大器,Texas Instruments
低功耗低电压,LPV 系列
得捷:
IC OPAMP GP 4 CIRCUIT 14TSSOP
立创商城:

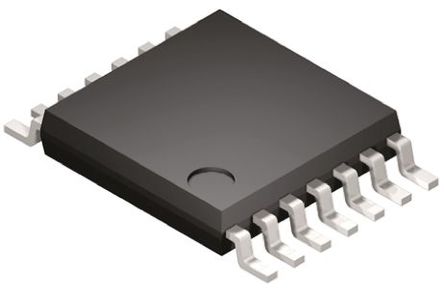

LPV324MT/NOPB
德州仪器TI:
Quad, 5-V, 152-kHz, low quiescent current 7.5-μA, RRO operational amplifier
欧时:
### 低功耗低电压运算放大器,LPV 系列### 运算放大器,Texas Instruments
贸泽:
Operational Amplifiers - Op Amps Low Pwr Quad Amp
艾睿:
Optimize your circuit with this general purpose amplifier LPV324MT/NOPB OP amp from Texas Instruments by adding functionalities such as amplifying voltages and performing basic mathematical operations. This op amp has a temperature range of -40 °C to 85 °C. This device utilizes biCMOS technology. It has 4 channels per chip. This device uses a single power supply.
安富利:
OP Amp Quad GP R-R O/P 5V 14-Pin TSSOP Rail
Chip1Stop:
OP Amp Quad GP R-R O/P 5V 14-Pin TSSOP Rail
Verical:
Op Amp Quad Micropower Amplifier R-R O/P 5V 14-Pin TSSOP Tube
输出电流 17.0 mA
供电电流 28 µA
电路数 4
通道数 4
共模抑制比 50 dB
输入补偿漂移 2.00 µV/K
转换速率 100 mV/μs
增益频宽积 152 kHz
输入补偿电压 1.5 mV
输入偏置电流 2 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 0.152 MHz
共模抑制比Min 50 dB
电源电压Max 5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LPV324MT/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LPV324MTX/NOPB 德州仪器 | 完全替代 | LPV324MT/NOPB和LPV324MTX/NOPB的区别 |
LPV324MTX 德州仪器 | 完全替代 | LPV324MT/NOPB和LPV324MTX的区别 |
LPV324MT 德州仪器 | 完全替代 | LPV324MT/NOPB和LPV324MT的区别 |
