LF156H/NOPB

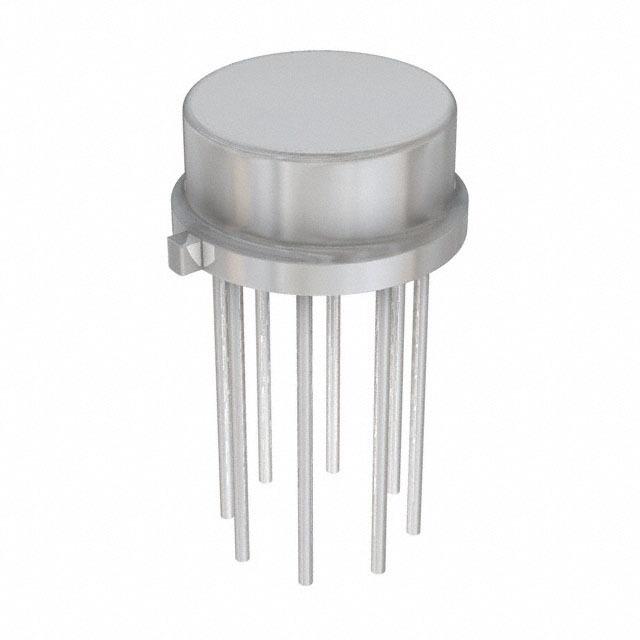

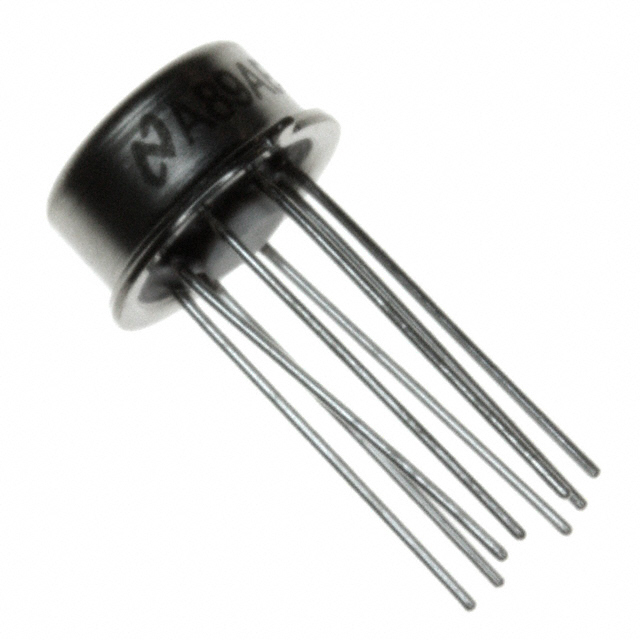

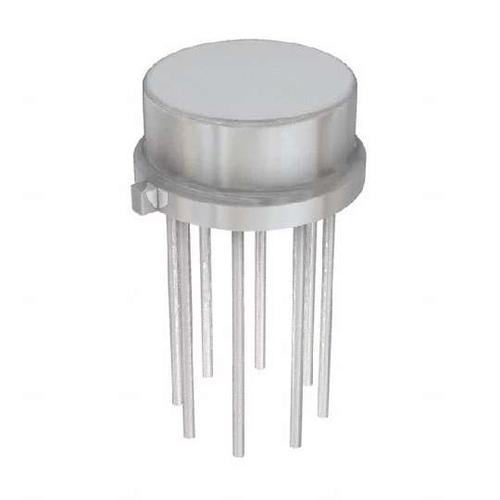

TEXAS INSTRUMENTS  LF156H/NOPB  运算放大器, 单路, 2.5 MHz, 1个放大器, 5 V/µs, ± 15V 至 ± 20V, TO-99, 8 引脚

The is a first monolithic JFET-input Operational Amplifier incorporates well-matched, high-voltage JFETs on the same chip with standard bipolar transistors BI-FET™ technology. This amplifier features low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection. The device is also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

.

Replace expensive hybrid and module FET op amps

.

Rugged JFETs allow blow-out free handling compared with MOSFET input devices

.

Excellent for low noise applications using either high or low source impedance-very low 1/f corner

.

Offset adjust does not degrade drift or common-mode rejection as in most monolithic amplifiers

.

New output stage allows use of large capacitive loads 5000pF without stability problems

.

Internal compensation and large differential input voltage capability

.

30pA Low input bias current

.

3pA Low input offset current

.

10¹²R High input impedance

.

0.01pA/√Hz Low input noise current

.

100dB High common-mode rejection ratio

.

106dB Large DC voltage gain

.

Green product and no Sb/Br
