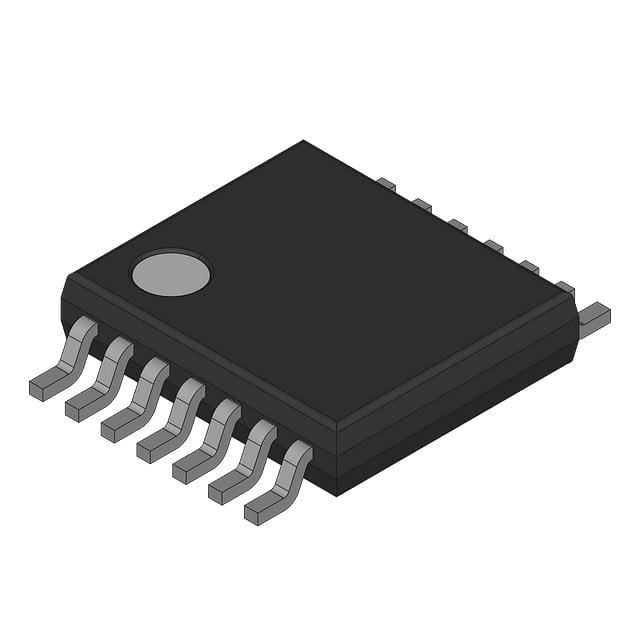

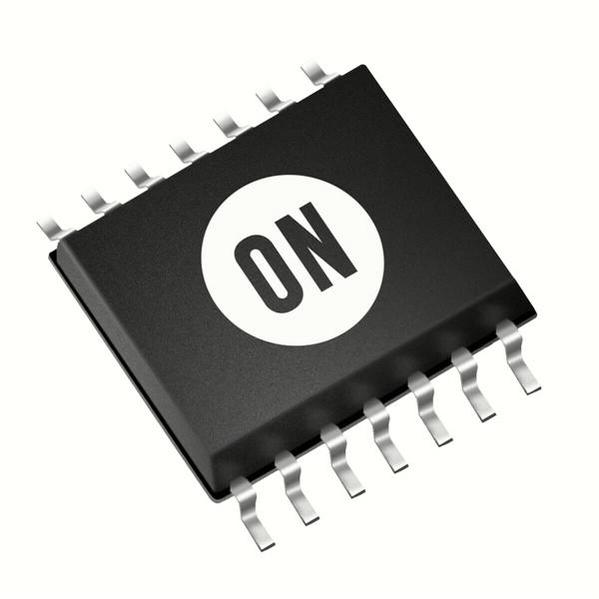

LM324DTBG

单电源四路运算放大器 Single Supply Quad Operational Amplifiers

The LM324 series are low-cost, quad op-amps with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V with quiescent currents about one-fifth of those associated with the MC1741 on a per amplifier basis. The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.

Features

---

 |

.

Short Circuited Protected Outputs

.

True Differential Input Stage

.

Single Supply Operation: 3.0 V to 32 V LM224, LM324, LM324A

.

Low Input Bias Currents: 100 nA Maximum LM324A

.

Four Amplifiers Per Package

.

Internally Compensated

.

Common Mode Range Extends to Negative Supply

.

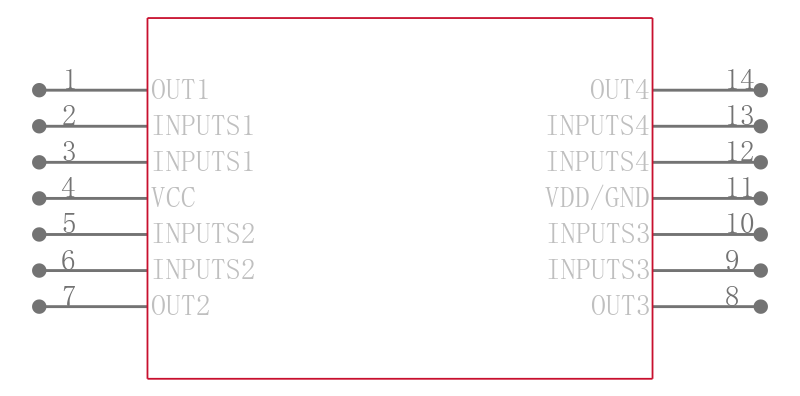

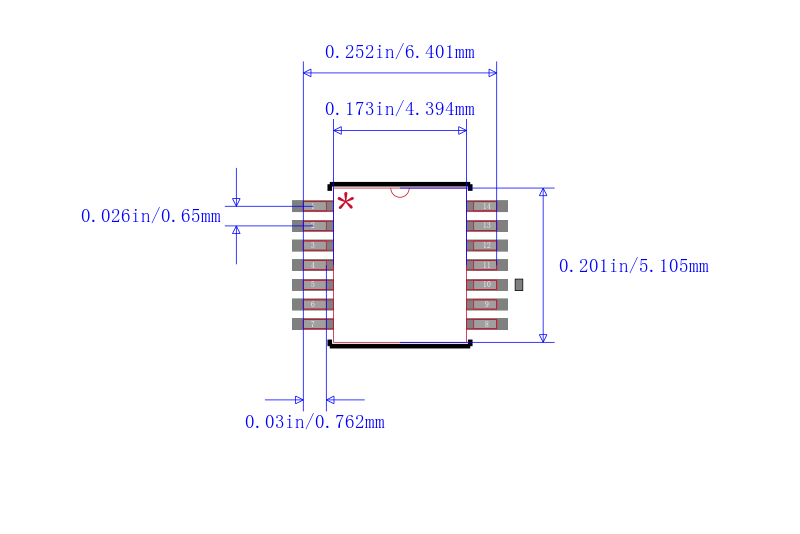

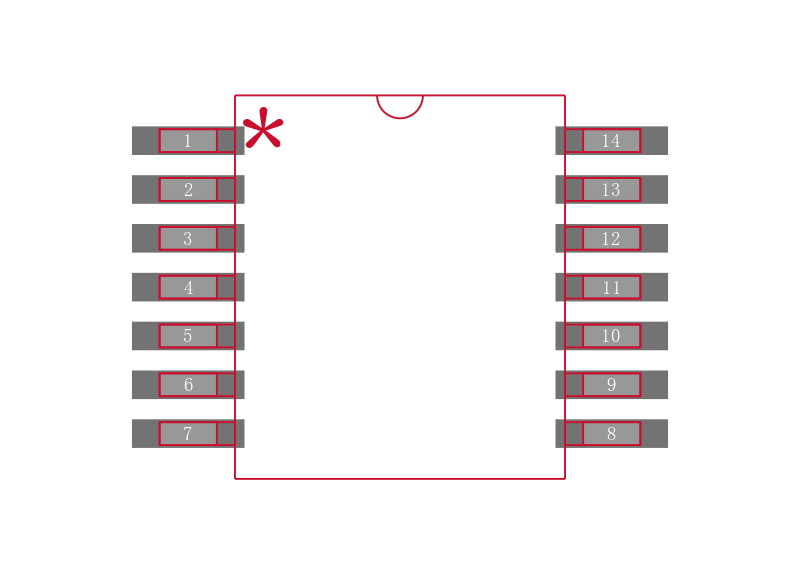

Industry Standard Pinouts

.

ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation

.

Pb-Free Packages are Available*
