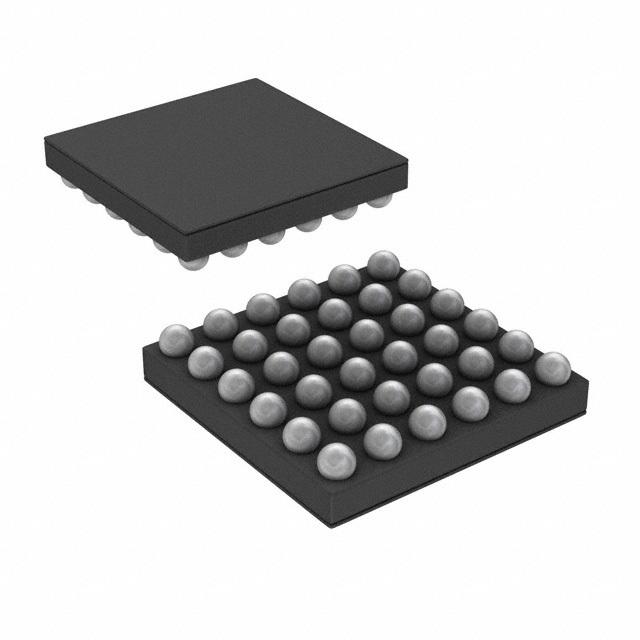

具有音频同步功能的 6 通道彩色 LED 驱动器 36-DSBGA -30 to 85
LP3952 is a color LED driver for battery powered handheld devices. It drives any color LEDs including RGB LEDs, indicator LEDs and keypad backlight LEDs. The boost DC-DC converter drives high current loads with high efficiency. The stand-alone command based RGB controller is feature rich and easy to configure. Different lighting patterns and blinking sequences can be programmed to driver registers. Built-in audio synchronization feature allows user to synchronize the color LEDs to audio signal. LED lighting can be controlled either by audio signal amplitude or frequency. There are many controls available for audio synchronization to get desired lighting effect, including gain, speed, and different filter settings. The flexible I2C interface allows easy control of LP3952. LED outputs can be also controlled with external PWM signal. Small DSBGA package together with minimum number of external components is a best fit for handheld devices.
频率 2 MHz
输出接口数 6
输入电压DC 3.00V ~ 7.20V
输出电压 5.3 V
输出电流 50 mA
供电电流 1000 mA
静态电流 450 µA
调节输出数 6
开关频率 2 MHz
拓扑结构 Boost
输入电压Max 7.2 V
输入电压Min 3 V
工作温度Max 85 ℃
工作温度Min -30 ℃
电源电压 3V ~ 5.5V
安装方式 Surface Mount
引脚数 36
封装 WFBGA-36
宽度 3 mm
封装 WFBGA-36
工作温度 -30℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 背光
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3952RL/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3952RLX/NOPB 德州仪器 | 类似代替 | LP3952RL/NOPB和LP3952RLX/NOPB的区别 |
