LTC2480HMS#PBF

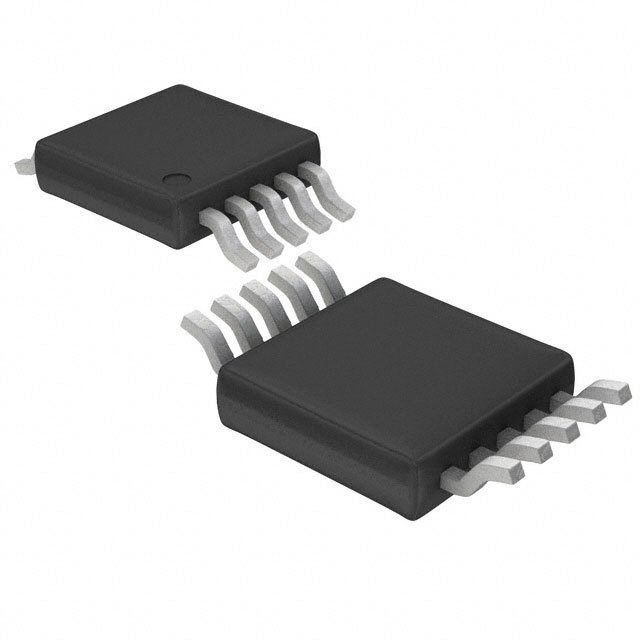

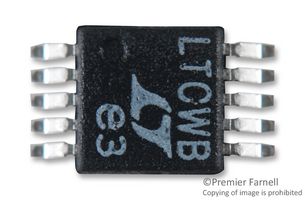

LINEAR TECHNOLOGY  LTC2480HMS#PBF  芯片, 模数转换器, 增量总和型, 16位, 10MSOP

The is a 16-bit +sign delta-sigma™ Analog-to-digital Converter ADC with easy drive input current cancellation and patented EasyDrive™ technology. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and input signals, with rail-to-rail input range to be directly digitized while maintaining exceptional DC accuracy. It includes on-chip programmable gain and an oscillator. The ADC can be configured to provide a programmable gain from 1 to 256 in 8 steps, measure an external signal or internal temperature sensor and reject line frequencies. It allows a wide common mode input range independent of the reference voltage. The reference can be as low as 100mV or can be tied directly to VCC. The ADC includes an on-chip trimmed oscillator eliminating the need for external crystals or oscillators.

.

Easy drive technology enables rail-to-rail inputs with zero differential input current

.

Directly digitizes high impedance sensors with full accuracy

.

GND to VCC Input/reference common mode range

.

No missing codes

.

No latency - digital filter settles in a single cycle

.

Internal oscillator
