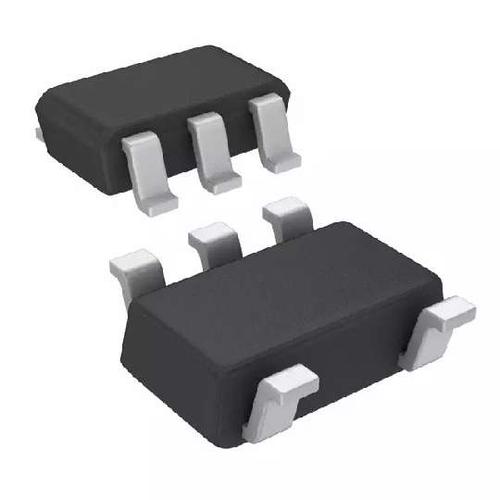

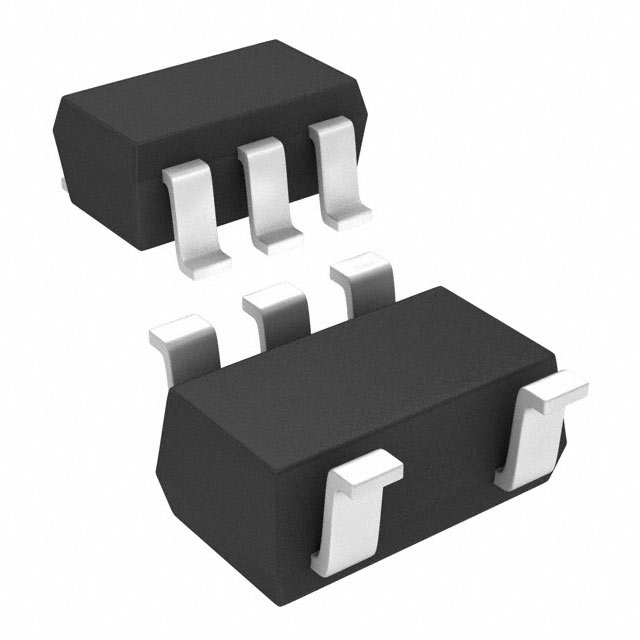

LDK130 系列 300 mA 3.3 V 固定 低噪声 LDO 稳压器 - SOT-23-5
Linear Voltage Regulator IC 1 Output 300mA SOT-23-5
得捷:
IC REG LINEAR 3.3V 300MA SOT23-5
立创商城:
LDK130M33R
贸泽:
LDO Voltage Regulators 300mA low Q LDO 1.9 to 5.5V 100mV
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO LDK130M33R linear regulator from STMicroelectronics to control your voltage levels! Its typical dropout voltage at current is 0.1@100mA|0.2@300mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.3 A. By only needing an input voltage of 1.9 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Users like the load regulation of 0.006%/mATyp and line regulation of 0.05%/VTyp. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.4@300mA V.
安富利:
LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R
富昌:
LDK130 系列 300 mA 3.3 V 固定 低噪声 LDO 稳压器 - SOT-23-5
Chip1Stop:
LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R
TME:
Voltage regulator; LDO, linear, fixed; 3.3V; 0.3A; SOT23-5; SMD
Verical:
LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R
儒卓力:
**LDO VREG 3.3V 0.3A SOT23 5L **
输出接口数 1
输出电压 3.3 V
输出电流 300 mA
针脚数 5
静态电流 70 µA
跌落电压 0.2V @300mA
输入电压Max 5.5 V
输入电压Min 1.9 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
