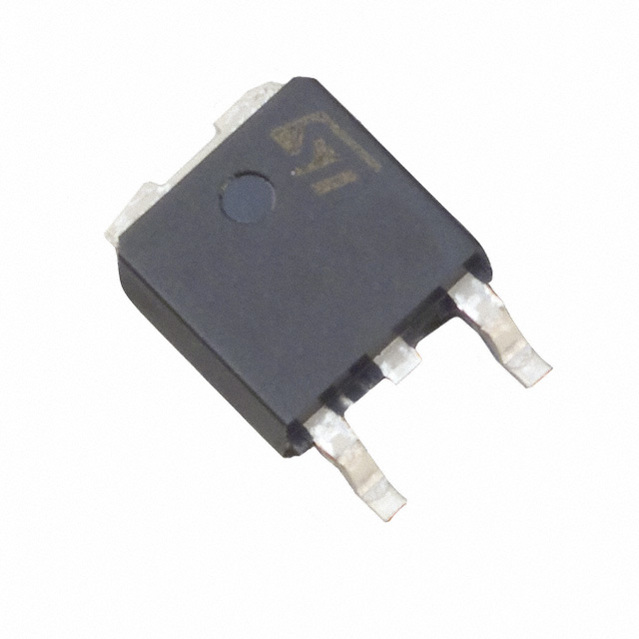

43034009,线性稳压器, 6V, 0 至 125度 C
Linear Voltage Regulator IC 1 Output 500mA DPAK
立创商城:
精密500mA稳压器
得捷:
IC REG LINEAR 6V 500MA DPAK
贸泽:
Linear Voltage Regulators Precision 500mA regulators
e络盟:
线性稳压器, 固定, 35V输入, 6V/500mA输出, TO-252-3
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this standard L78M06ABDT-TR linear regulator from STMicroelectronics to control your voltage levels! Its typical dropout voltage at current is 2@350mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. It only needs a voltage that does not exceed 35 V to effectively power your circuit. With a fixed output that has a voltage of 6 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 120mV and line regulation of 100mV. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
Standard Regulator Pos 6V 0.5A 3-Pin2+Tab DPAK T/R
Verical:
Standard Regulator Pos 6V 0.5A 3-Pin2+Tab DPAK T/R
DeviceMart:
IC REG LDO 6V .5A DPAK
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 6V 500mA D-Pak
输出接口数 1
输出电压 6 V
输出电流 500 mA
供电电流 6 mA
针脚数 3
跌落电压 2V @350mA
输入电压Max 35 V
输入电压Min 8 V
输出电压Min 6 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 35 V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.6 mm
宽度 6.2 mm
高度 2.4 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L78M06ABDT-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
L78M06CDT-TR 意法半导体 | 类似代替 | L78M06ABDT-TR和L78M06CDT-TR的区别 |
L78M06ACDT-TR 意法半导体 | 类似代替 | L78M06ABDT-TR和L78M06ACDT-TR的区别 |
UA78M06CKTPR 德州仪器 | 功能相似 | L78M06ABDT-TR和UA78M06CKTPR的区别 |
