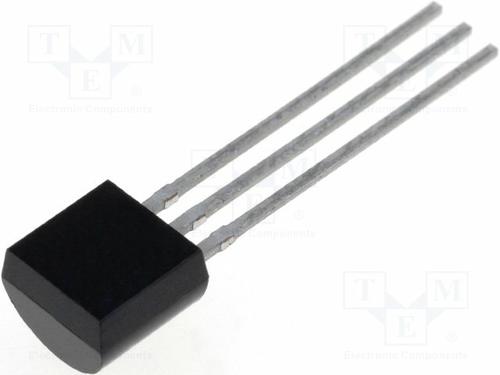

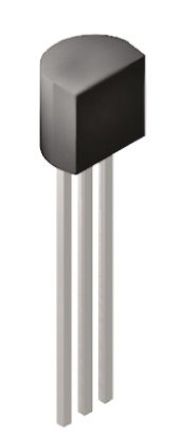

LM2931AZ-5.0RAG

ON SEMICONDUCTOR  LM2931AZ-5.0RAG.  芯片, 稳压器, LDO, 5V, 0.1A, TO-92-3

低压降 LDO 线性电压调节器，高达 120mA，

得捷:
IC REG LINEAR 5V 100MA TO92-3

立创商城:
LM2931AZ-5.0RAG

欧时:
ON Semiconductor LM2931AZ-5.0RAG LDO 稳压器, 5 V输出, 100mA最大输出, ±3.8%精确度, 最大为 40 V输入

e络盟:
稳压器, 固定LDO, 40V输入, 160mV压差, 5V/100mA输出, TO-92-3

艾睿:
Keep calm and stay stable by implementing this LDO LM2931AZ-5.0RAG linear regulator developed by ON Semiconductor. Its typical dropout voltage at current is 0.015@10mA|0.16@100mA V. It has an overall accuracy of ±3.8 %. This voltage regulation device&s;s single output can produce a current up to 0.1Typ A. By working with a maximum input voltage of 40 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. A load regulation of 50mV and line regulation of 30mV is necessary for providing a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.2@10mA|0.6@100mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

Allied Electronics:
LM2931AZ-5.0RAG, LDOVoltageRegulator, 100mA, 5V +/-3.8%, Max. of 40Vin, 3-Pin TO-92

安富利:
LDO Regulator Pos 5V 0.1A 3-Pin TO-92 T/R

富昌:
LM2931 系列 40 V 100 mA 通孔 LDO 稳压器 - TO-92

TME:
Voltage regulator; LDO, linear, fixed; 5V; 0.1A; TO92; THT; ±3.8%

Verical:
LDO Regulator Pos 5V 0.1A 3-Pin TO-92 T/R

Newark:
# ON SEMICONDUCTOR  LM2931AZ-5.0RAG  Fixed LDO Voltage Regulator, 14V to 40V, 160mV Dropout, 5Vout, 100mAout, TO-92-3

力源芯城:
100mA可调输出带有60V负载保护低压差稳压器

DeviceMart:
IC REG LDO 5V .1A TO92

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 100mA TO-92-3
