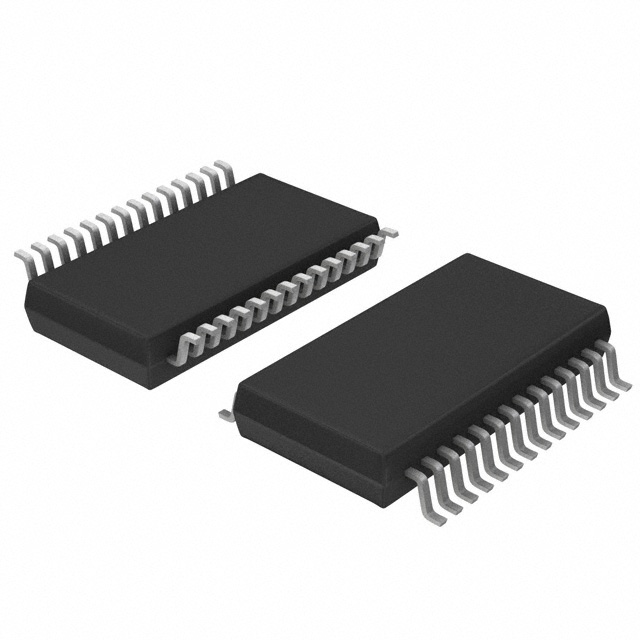

LTC1859IG#PBF

LINEAR TECHNOLOGY  LTC1859IG#PBF  模数转换器, 八路, 16 bit, 100 kSPS, 单, 4.75 V, 5.25 V, SSOP

The is a 8-channel low power Analog-to-digital Converter ADC with shutdown. This SoftSpan™ ADCs can be software-programmed. The 8-channel multiplexer can be programmed for single-ended inputs or pairs of differential inputs or combinations of both. In addition, all channels are fault protected to ±25V. A fault condition on any channel will not affect the conversion result of the selected channel. An onboard high performance sample-and-hold and precision reference minimize external components. The low 40mW power dissipation is made even more attractive with two user selectable power shutdown modes. The internal clock is trimmed for 5µs maximum conversion time and the sampling rate is guaranteed at 100ksps.

.

SPI/MICROWIRETM compatible serial I/O

.

Power shutdown of nap and sleep

.

Operates with internal or external reference

.

Internal synchronized clock

.

8-channel multiplexer with ±25V protection

.

Single 5V supply

.

40mW typical Power dissipation

.

87dB typical Signal-to-noise ratio
