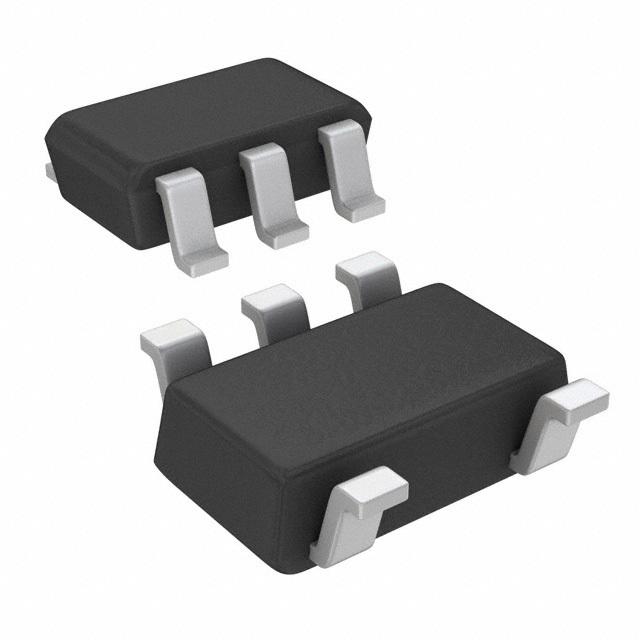

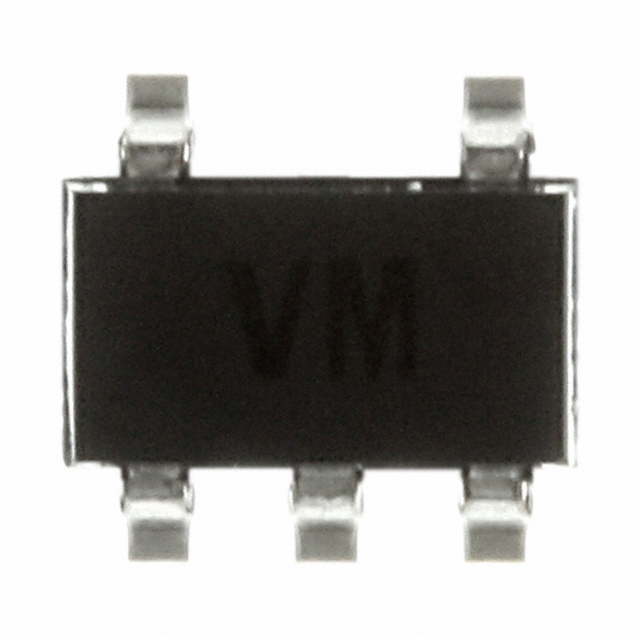

LD2985BM18R

非常低的压差和低噪声稳压器低ESR CAP 。兼容，具有抑制功能 VERY LOW DROP AND LOW NOISE VOLTAGE REGULATOR LOW ESR CAP. COMPATIBLE, WITH INHIBIT FUNCTION

PMIC - 稳压器 - 线性 正 固定 1 输出 150mA SOT-23-5

得捷:
IC REG LINEAR 1.8V 150MA SOT23-5

立创商城:
LD2985BM18R

艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO LD2985BM18R linear regulator from STMicroelectronics is perfect for you! Its typical dropout voltage at current is 0.001@0mA|0.007@1mA|0.04@10mA|0.12@50mA|0.28@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 2.5 V and a maximum voltage of 16 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Using a line regulation of 0.014%/Vi is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.003@0mA|0.01@1mA|0.06@10mA|0.15@50mA|0.35@150mA V. Its polarity is positive.

安富利:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R

Verical:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R

力源芯城:
极低压差且低噪声稳压器

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 150mA SOT-23-5
