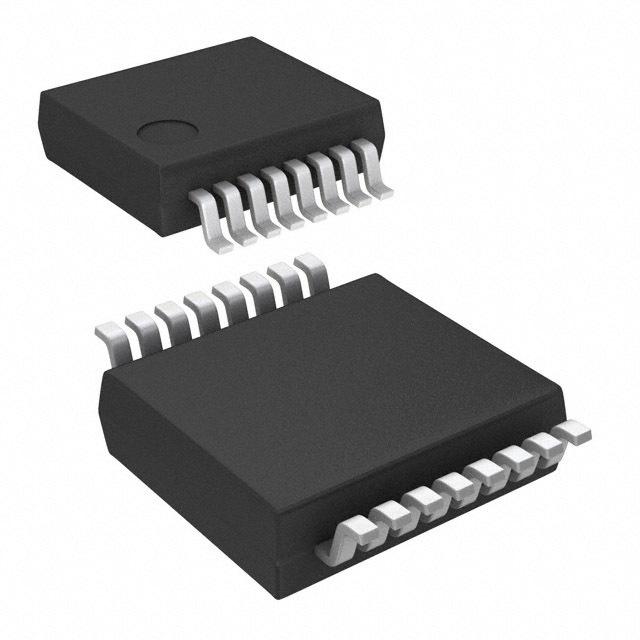

LB11961V-TLM-H

OM SemiconductorBLDC（无刷直流）电动机驱动器 ### 电动机控制器和驱动器，ON Semiconductor

LB11961V is a single-phase bipolar drive motor that easily implements direct PWM motor drive systems with excellent efficiency. LB11961V is optimal for fan motor drive in personal computer power supply systems and CPU cooling fans.

Features |   | Benefits

---|---|---

 | |  | |  |

.

Built-in regenerative diode Di

|   |

.

Requires a minimal number of external components

.

Minimum speed setting pin

|   |

.

Allows full-speed mode operation at startup

.

Single-phase full wave drive 16 V, 1.0 A transistors are built in

|   |

.

Built-in variable speed function controlled by a thermistor input

|   |

.

Low vibration variable speed control using externally clocked high-side transistor direct PWM drive

|   |

.

Built-in HB

|   |
