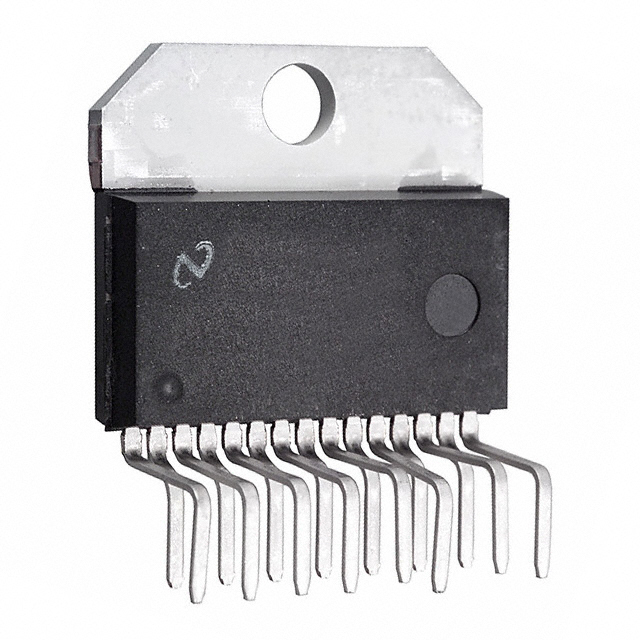

LM4702音频功率放大器系列立体声高保真度与静音200伏驱动器 LM4702 Audio Power Amplifier Series Stereo High Fidelity 200 Volt Driver with Mute
The is a high fidelity Audio Power Amplifier Driver designed for demanding consumer and pro-audio applications. Amplifier output power may be scaled by changing the supply voltage and number of output devices. The LM4702 is capable of delivering in excess of 300 watts per channel single ended into a 8R load in the presence of 10% high line headroom and 20% supply regulation. The LM4702 includes thermal shut down circuitry that activates when the die temperature exceeds 150°C. The LM4702"s mute function, when activated, mutes the input drive signal and forces the amplifier output to a quiescent state. The LM4702 is available in 3 grades that span a wide range of applications and performance levels. The LM4702B includes a higher voltage rating along with the tighter specifications.
- .
- Very high voltage operation
- .
- Scalable output power
- .
- Minimum external components
- .
- External compensation
- .
- Thermal shutdown and mute
- .
- 3µV Equivalent noise
- .
- 110dB typical PSRR
- .
- 0.0003% THD+N A and B grades
- .
- 4W Power dissipation
- .
- Green product and no Sb/Br
