LM2940 -N / LM2940C 1A低压降稳压器 LM2940-N/LM2940C 1A Low Dropout Regulator
The LM2940-N and LM2940C positive voltage regulators feature the ability to source 1 A of output current with a dropout voltage of typically 0.5 V and a maximum of 1 V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3 V. The quiescent current with 1 A of output current and an input-output differential of 5 V is therefore only 30 mA. Higher quiescent currents only exist when the regulator is in the dropout mode VIN − VOUT ≤ 3 V.
Designed also for vehicular applications, the LM2940-N and LM2940C and all regulated circuitry are protected from reverse battery installations or 2-battery jumps. During line transients, such as load dump when the input voltage can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both the internal circuits and the load. The LM2940-N and LM2940C cannot be harmed by temporary mirror-image insertion. Familiar regulator features such as short circuit and thermal overload protection are also provided.
输出接口数 1
输出电压 12 V
输出电流 1 A
静态电流 10.0 mA
输出电容类型 Tantalum
跌落电压 0.5V @1A
调节输出数 1
输入电压Max 26 V
输入电压Min 13.6 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 13.6V ~ 26V
安装方式 Surface Mount
引脚数 4

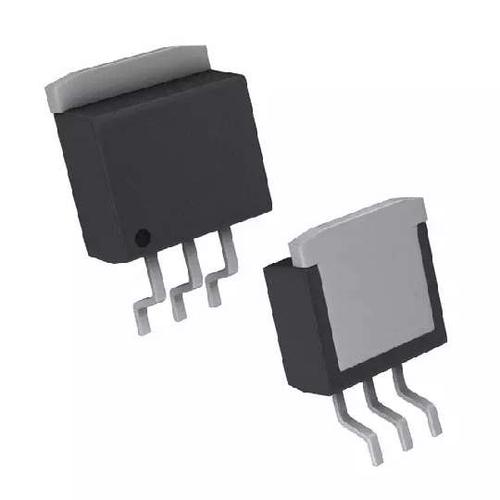

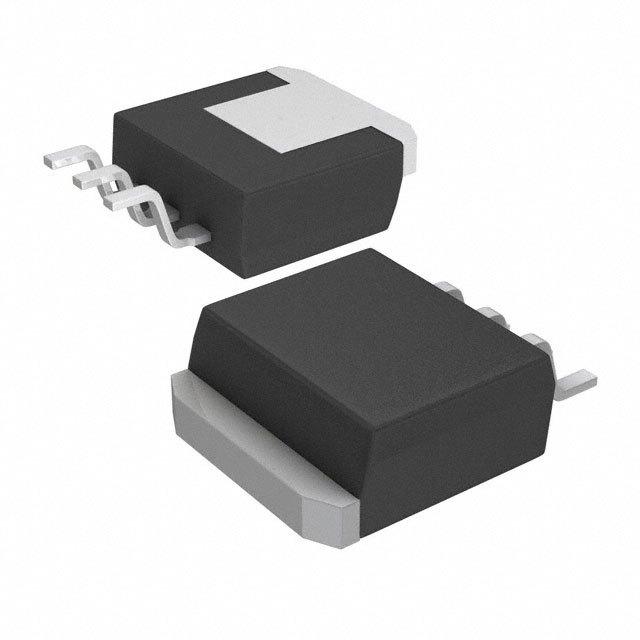

封装 TO-263-4
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2940SX-12/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2940S-12/NOPB 德州仪器 | 类似代替 | LM2940SX-12/NOPB和LM2940S-12/NOPB的区别 |
LM2940CS-12/NOPB 德州仪器 | 类似代替 | LM2940SX-12/NOPB和LM2940CS-12/NOPB的区别 |
LM2940CS-12 德州仪器 | 类似代替 | LM2940SX-12/NOPB和LM2940CS-12的区别 |
