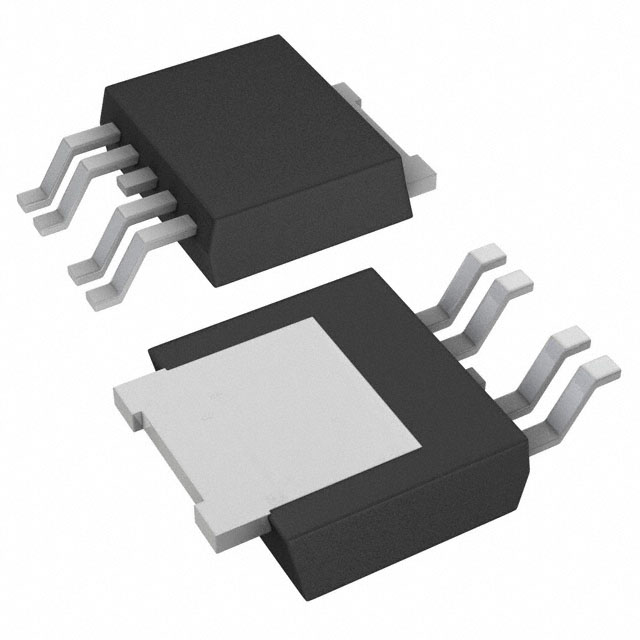

LD49300 系列 0.8 V PPAK5 3 A 极低压差 用于低输出稳压器
Linear Voltage Regulator IC 1 Output 3A PPAK
立创商城:
LD49300PT08R
得捷:
IC REG LINEAR POS ADJ 3A PPAK
e络盟:
可调LDO稳压器, 1.4V至5.5V, 400mV压降, 0.8V至4.5V/3A输出, PPACK-5
艾睿:
Having trouble maintaining a steady voltage? This LDO LD49300PT08R linear regulator from STMicroelectronics will give you control over the voltage levels of your circuit. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 3 A. By only needing an input voltage of 1.4 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With an adjustable|fixed output that has a voltage of 0.8 to 4.5|0.8 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 1% and line regulation of 0.1%/V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has an operating temperature range of -25 °C to 125 °C. The maximum dropout voltage is 0.2@1500mA|0.4@3A V.
安富利:
LDO Regulator Pos 0.8V to 4.5V0.8V 3A 5-Pin4+Tab PPAK T/R
富昌:
LD49300 系列 3 A 可调 最低 0.8 V VLDO 稳压器 - PPAK-5
Chip1Stop:
LDO Regulator Pos 0.8V to 4.5V0.8V 3A 5-Pin4+Tab PPAK T/R
Verical:
LDO Regulator Pos 0.8V to 4.5V0.8V 3A 5-Pin4+Tab PPAK T/R
DeviceMart:
IC REG LDO ADJ 3A PPAK
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 4.5 V 3A PPAK
输出接口数 1
输出电压 0.8V ~ 4.5V
输出电流 3 A
供电电流 4mA ~ 6mA
针脚数 5
跌落电压 1.5V @3A
输入电压Max 5.5 V
输入电压Min 1.4 V
输出电压Max 4.5 V
输出电压Min 0.8 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -25 ℃
精度 ±1.5 %
输入电压 1.4V ~ 5.5V
安装方式 Surface Mount
引脚数 5
封装 TO-252-5
封装 TO-252-5
工作温度 -25℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
