SIMPLE SWITCHER® 3A降压型稳压器 SIMPLE SWITCHER® 3A Step-Down Voltage Regulator

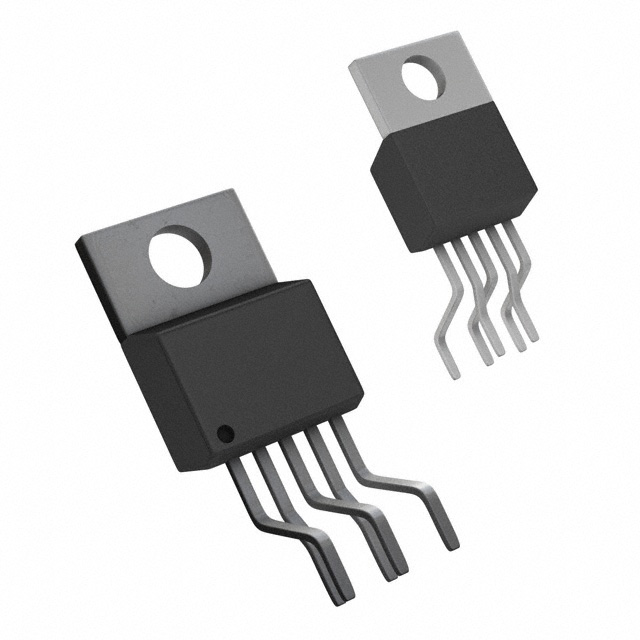

降压 开关稳压器 IC 正 固定 12V 1 输出 3A TO-220-5 成形引线
得捷:
IC REG BUCK 12V 3A TO220-5
立创商城:
LM2576T-12/LF03
德州仪器TI:
SIMPLE SWITCHER® 40V, 3A Low Component Count Step-Down Regulator
贸泽:
Switching Voltage Regulators A 926-LM2576T-12/NOPB
艾睿:
Adjust the voltage level of your devices with this inverting and step down LM2576T-12/LF03 DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 4 V and no higher than 40 V. With a fixed output that has a voltage of 12 V, this is power management at its best. This converter is 88typ % efficient. It has a switching frequency of 58 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has an operating temperature range of -40 °C to 125 °C.
安富利:
Conv DC-DC Single Inv/Step Down 4V to 40V 5-Pin5+Tab TO-220
输出接口数 1
输出电压 12 V
输出电流 3 A
静态电流 5.00 mA
调节输出数 1
开关频率 58 kHz
拓扑结构 Buck
开关电流 5.8 A
输入电压Max 40 V
输入电压Min 4 V
输出电压Min 12 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 4V ~ 40V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
封装 TO-220-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2576T-12/LF03 TI 德州仪器 | 当前型号 | 当前型号 |
LM2576T-12/NOPB 德州仪器 | 类似代替 | LM2576T-12/LF03和LM2576T-12/NOPB的区别 |
