LINEAR TECHNOLOGY LTC2934CDC-1#TRMPBF 监控器, 低电平有效复位, 1.6V-5.5V输入, DFN-8
Use this voltage monitor voltage monitor IC from to safeguard your components from voltage spikes. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage supervisor IC has an operating temperature range of 0 °C to 70 °C. It has a typical reset threshold voltage of Adj V, with a minimum of Adj V and a maximum of Adj V. This device has a minimum operating supply voltage of 1.6 V and a maximum of 5.5 V.
供电电流 500 nA
针脚数 8
阈值电压 400 mV
复位电压Max Adjustable
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 1.6V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.6 V
安装方式 Surface Mount

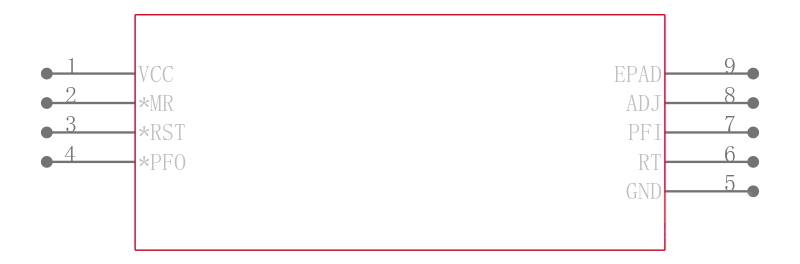

引脚数 8

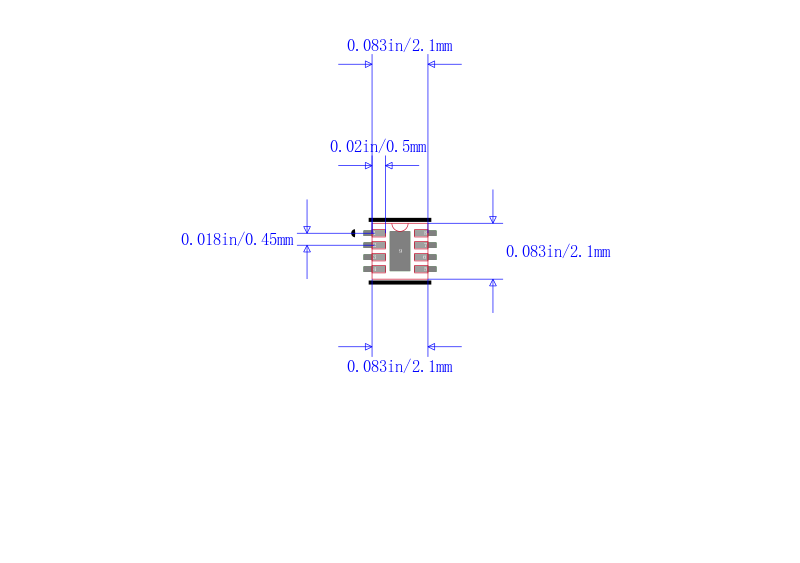

封装 DFN-8
封装 DFN-8
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC2934CDC-1#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2934IDC-1#TRMPBF 凌力尔特 | 类似代替 | LTC2934CDC-1#TRMPBF和LTC2934IDC-1#TRMPBF的区别 |
LTC2934CDC-1#TRPBF 凌力尔特 | 类似代替 | LTC2934CDC-1#TRMPBF和LTC2934CDC-1#TRPBF的区别 |
