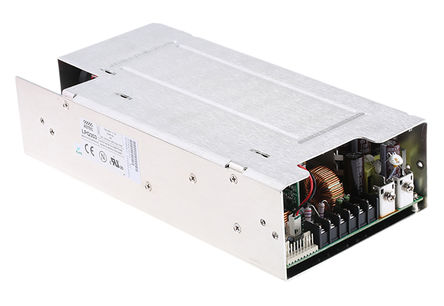

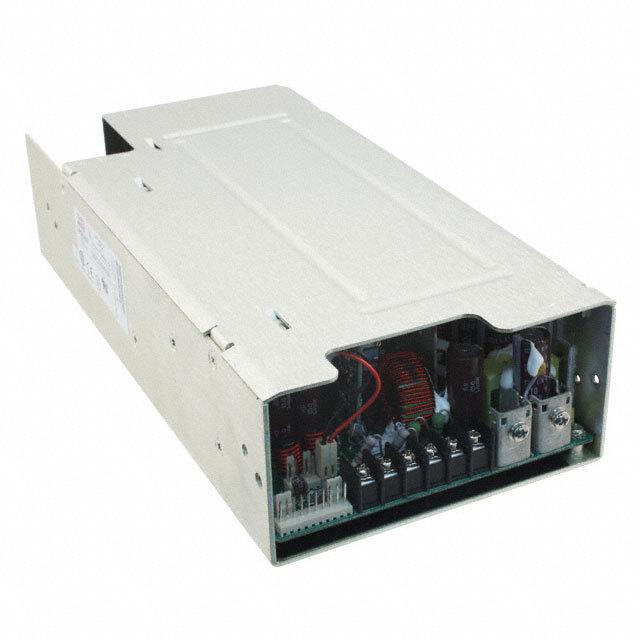

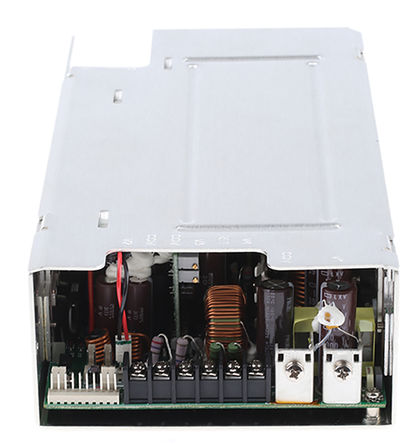

Astec 350W Switch Mode Quad Output AC/DC Power Supply - LPQ 350 Series

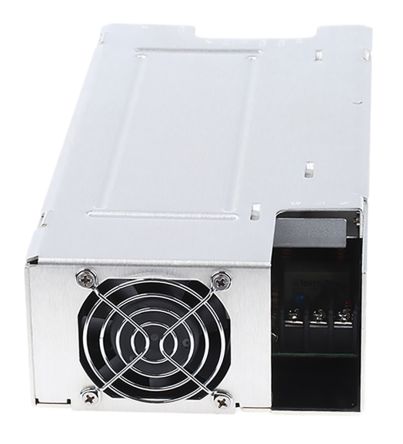

350W switch mode AC/DC power supply with quad output. The 1st and 4th output of this AC power adapter have remote sensing and there are also two supervisory outputs of 5V and 12V. The 4th output of this AC/DC power supply is floating and adjustable. This AC/DC power supply has active power factor correction, a built-in EMI filter and is supplied with an end mounted fan.
Remote sense on 1st and 4th output
Single wire current sharing
Power fail and remote inhibit
Built-in EMI filter
Efficiency of 75% typical at full load
Overvoltage, overload and thermal overload protection
Adjustable floating 4th output
2 supervisory outputs of 5V and 12V
Safety ground leakage current of <0.5mA @ 50/60 Hz, 264 VAC input
Active power factor correction compliance to IEC EN6100-3-2
EMC compliance to FCC Class B conducted and radiated, CISPR 22 Class B conducted and radiated, EN55022 Class B conducted and radiated, VDE 0878 PT3 Class B conducted and radiated
### 注
Derating from 50 to 70°C is 2.5% per °C.
Suitable connecting kit for this AC/DC power supply: stock number 151-638
### 认可
VDE; UL Recognised; CSA Certified; NEMKO; CB; BABT
### 标准
VDE: 0805/EN60950 IEC950, UL1950, CSA 22.2-234 level 5, NEMKO: EN 60950/EMKO-TUE 74 sec 203, BABT: EN60950/BS7002
电源电压DC 264 V
额定功率 350 W
输出接口数 4
输入电压DC 120V ~ 300V
输出电压 5.00 V, 15.0 V, -15.0 V, 24.0 V
输出电流 50.0 A
输出功率 350 W
输入电压DC Max 300 V
输入电压DC Min 120 V
输入电压AC Max 264 v
输入电压AC Min 85 v
输出功率Max 350 W
额定功率Max 250 W
工作温度Max 50 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC, 120VDC ~ 300VDC
安装方式 Chassis
引脚数 25
封装 封闭
长度 273.8 mm
宽度 127 mm
高度 88.9 mm
封装 封闭
重量 1.8 kg
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
