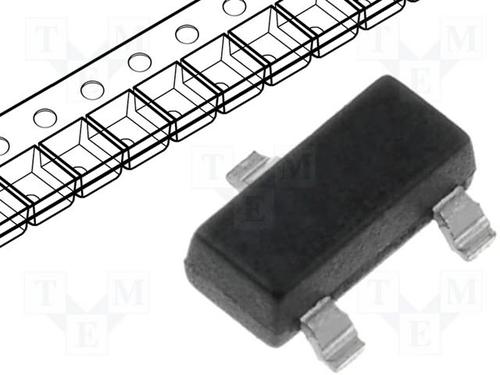

开关稳压器 SOT-23 Boost Controller
Need to change voltage levels in a DC circuit? Use the step up DC voltage controller from . Its output produces a current of 1Max A. With an output that has a voltage of 0.8 to 36 V, this is power management at its best. This DC voltage controller has single output. This DC voltage controller has an input voltage of 2.5 to 9.8 V. This part offers a switching frequency of 650 kHz in order to work properly. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This DC voltage controller has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电压 0.8V ~ 36V
输出电流 20 A
通道数 1
开关频率 550 kHz
输入电压Max 9.8 V
输入电压Min 2.5 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 9.8V
输入电压 2.5V ~ 9.8V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
高度 1 mm
封装 TSOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1872BES6#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1872BES6#TRMPBF 凌力尔特 | 类似代替 | LTC1872BES6#TRPBF和LTC1872BES6#TRMPBF的区别 |
LTC1872BES6#TR 凌力尔特 | 功能相似 | LTC1872BES6#TRPBF和LTC1872BES6#TR的区别 |
