开关稳压器 High Voltage 30V, 1.25A Step Down Switching Regulator 10-WSON -40 to 125
The LM2695 Step Down Switching Regulator features all of the functions needed to implement a low cost, efficient, buck bias regulator capable of supplying 1.25A to the load. This buck regulator contains a 33V N-Channel Buck Switch, and is available in the thermally enhanced WSON-10 and HTSSOP-14 packages. The hysteretic regulation scheme requires no loop compensation, results in fast load transient response, and simplifies circuit implementation. The operating frequency remains constant with line and load variations due to the inverse relationship between the input voltage and the on-time. The current limit detection is set at 1.25A. Additional features include: VCC under-voltage lockout, thermal shutdown, gate drive under-voltage lockout, and maximum duty cycle limiter.
输出接口数 1
输出电压 2.5V ~ 24V
输出电流 1.25 A
调节输出数 1
开关频率 1.00 MHz
拓扑结构 Buck
输入电压Max 30 V
输入电压Min 8 V
输出电压Max 24 V
输出电压Min 2.5 V
输出电流Max 1.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 30 V
安装方式 Surface Mount
引脚数 10

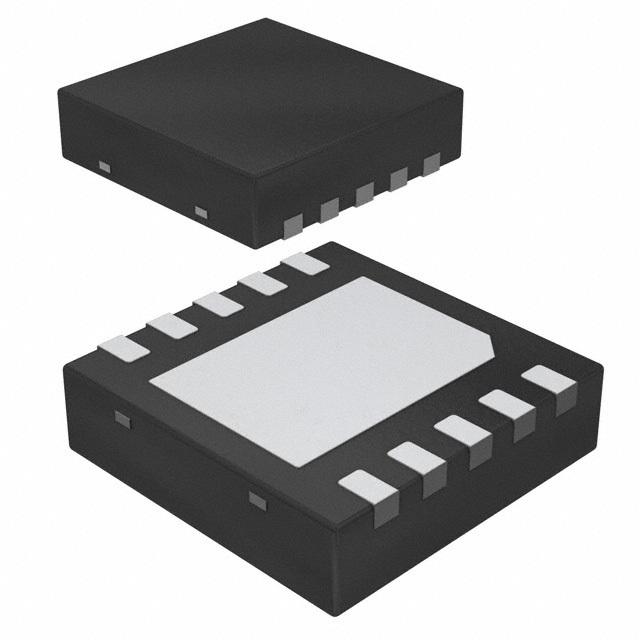

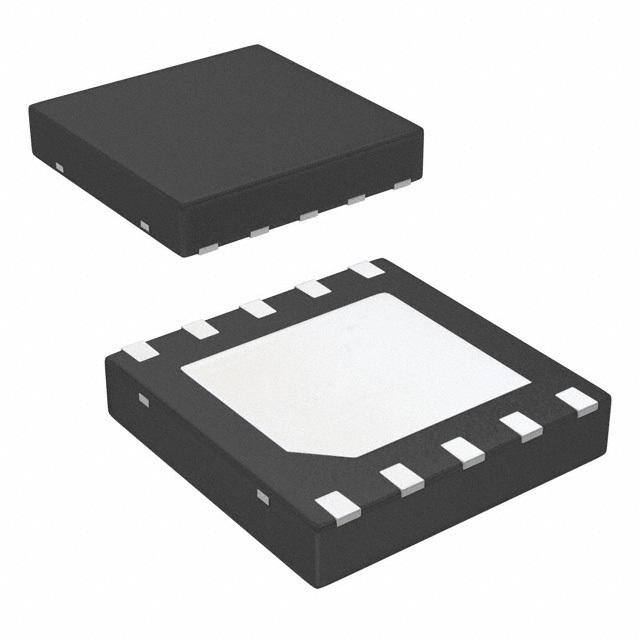

封装 WSON-10
长度 4 mm
宽度 4 mm
高度 0.8 mm
封装 WSON-10
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2695SDX/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2695SDX 德州仪器 | 完全替代 | LM2695SDX/NOPB和LM2695SDX的区别 |
LM2695SD/NOPB 德州仪器 | 类似代替 | LM2695SDX/NOPB和LM2695SD/NOPB的区别 |
