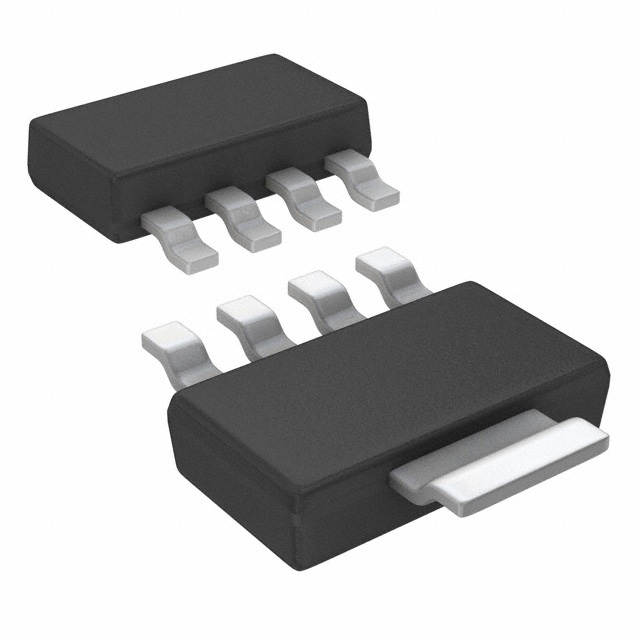

TEXAS INSTRUMENTS LP3964EMP-3.3/NOPB 固定电压稳压器, LDO, 2.5V至7V, 240mV压差, 3.3V输出, 800mA输出, SOT-223-5
LDO(低压降)线性稳压器,600mA 至 800mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LIN 3.3V 800MA SOT223-5
德州仪器TI:
800-mA, low-dropout voltage regulator with enable & sense
欧时:
Texas Instruments LP3964EMP-3.3/NOPB 快速低压降稳压器, 3.3 V输出, 800mA最大输出, ±1.5%精确度
贸泽:
低压差稳压器 800Ma Ultra-LDO
e络盟:
TEXAS INSTRUMENTS LP3964EMP-3.3/NOPB 固定电压稳压器, LDO, 2.5V至7V, 240mV压差, 3.3V输出, 800mA输出, SOT-223-5
艾睿:
Stable power is ideal for better processing this LDO LP3964EMP-3.3/NOPB linear regulator developed by Texas Instruments will help do so. Its typical dropout voltage at current is 0.024@80mA|0.24@800mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 0.8 A. With a small input voltage of 2.5 V and a max of 7 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 0.02%Typ and line regulation of 0.02%Typ a constant current can be produced at the output of your circuit. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.03@80mA|0.3@800mA V.
安富利:
LDO Regulator Pos 3.3V 0.8A 5-Pin4+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 3.3V 0.8A 5-Pin4+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 3.3V 0.8A 5-Pin4+Tab SOT-223 T/R
Newark:
# TEXAS INSTRUMENTS LP3964EMP-3.3/NOPB Fixed LDO Voltage Regulator, 2.5V to 7V, 240mV Dropout, 3.3Vout, 800mAout, SOT-223-5
DeviceMart:
IC REG LDO 3.3V .8A SOT223-5
额定电流 800 A
容差 ±3 %
输出接口数 1
输入电压DC 7.00V max
输出电压 3.3 V
输出电流 800 mA
供电电流 9mA ~ 15mA
针脚数 5
静态电流 3.00 mA
输出电容类型 Ceramic
跌落电压 240 mV
调节输出数 1
输入电压Max 7 V
输入电压Min 2.5 V
输出电压Min 3.3 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤7 V
安装方式 Surface Mount
引脚数 5
封装 TO-261-5
长度 6.5 mm
宽度 3.56 mm
高度 1.6 mm
封装 TO-261-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP3964EMP-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP3965EMP-3.3/NOPB 德州仪器 | 完全替代 | LP3964EMP-3.3/NOPB和LP3965EMP-3.3/NOPB的区别 |
LP3874EMP-3.3 德州仪器 | 完全替代 | LP3964EMP-3.3/NOPB和LP3874EMP-3.3的区别 |
LP3964EMPX-3.3 德州仪器 | 完全替代 | LP3964EMP-3.3/NOPB和LP3964EMPX-3.3的区别 |
