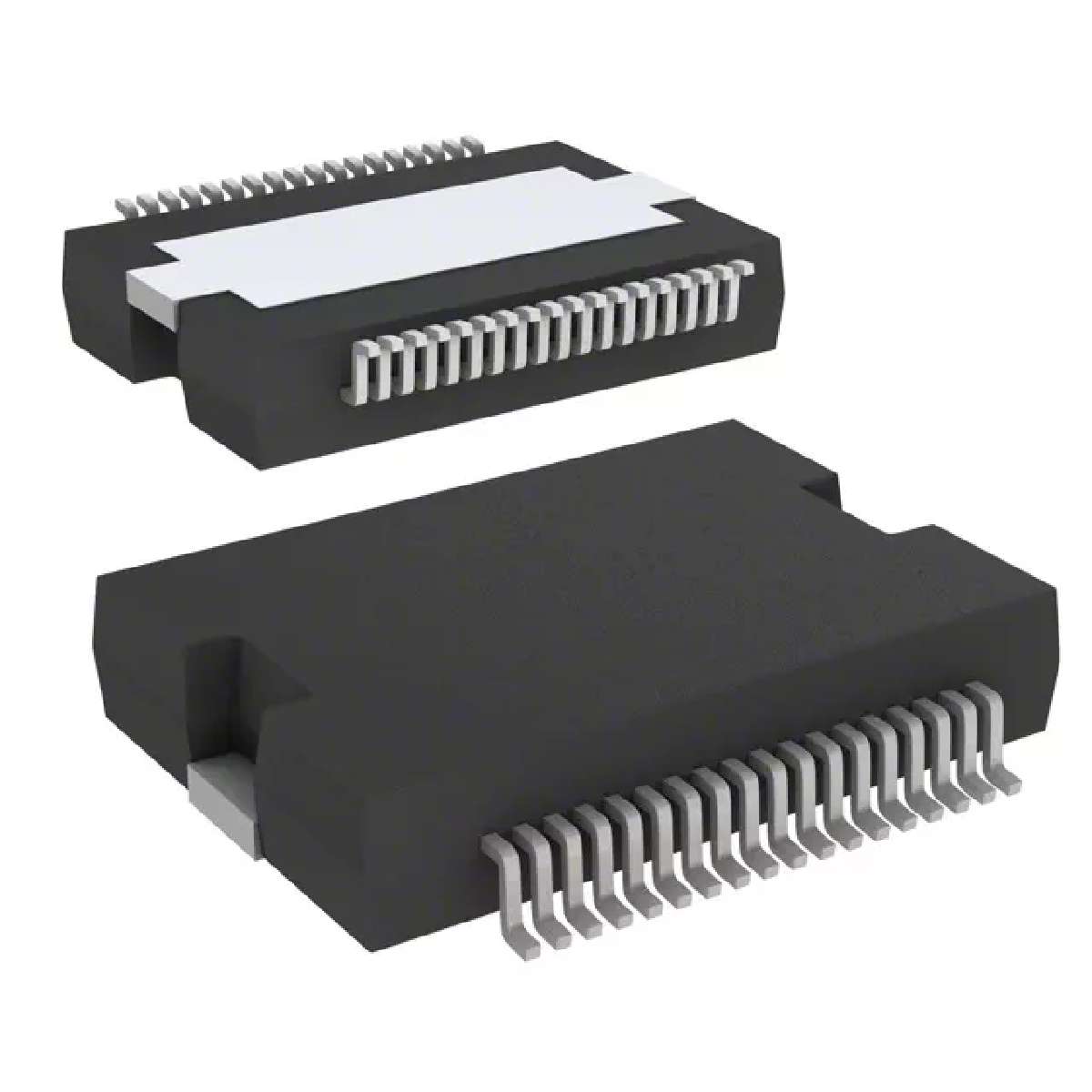

L9348-TR

门驱动器 QUAD Lo SIDE DRIVER

The L9348 is a monolithic integrated quad low side driver realized in advanced Multipower-BCD technology. It is intended to drive inductive loads relays, electromagnetic valves in automotive and industrial applications.

**Key Features**

.

SIGNAL- AND POWER-GROUND-LOSS SHUTDOWN

.

OVERTEMPERATURE SHUTDOWN

.

3.3V CMOS COMPATIBLE INPUTS AND STATUS

.

OUTPUT SHORT CIRCUIT CURRENT PROTECTION

.

LOW ON-RESISTANCE 2 X 0.2 , 2 X 0.35 TYP.

.

SUPPLY VOLTAGE RANGE: 4.8 TO 18V

.

OUTPUT VOLTAGE CLAMP DURING RECIRCULATION OF INDUCTIVE LOADS

.

OUTPUT VOLTAGE UP TO 40V

.

LOW POWER DISSIPATION DURING RECIRCULATION OF INDUCTIVE LOADS BY INTEGRATED FREE WHEELING DIODES 3A-DRIVERS ONLY

.

REAL TIME DIAGNOSTIC FUNCTIONS

.

OUTPUT CURRENT CAPABILITY 2 X 5A AND 2 X 3A
