LM2595S-3.3

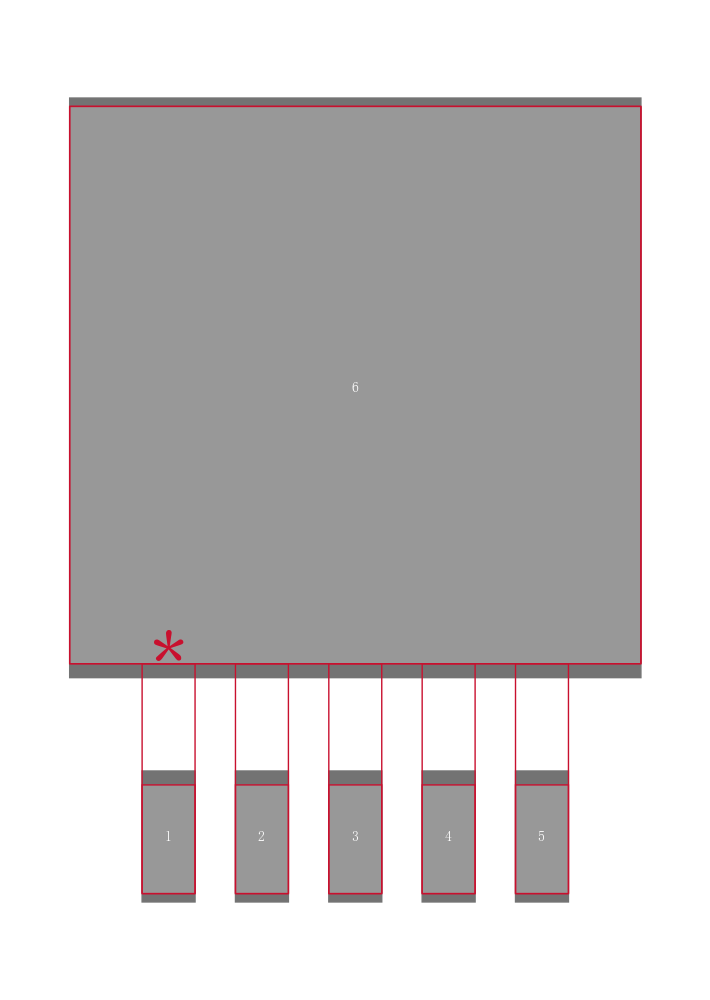

TEXAS INSTRUMENTS  LM2595S-3.3  降压开关稳压器, 固定, 4.5V-40V输入, 3.3V和1A输出, TO-263-5

The is a step-down Voltage Regulator provides all the active functions for a step-down buck switching regulator, capable of driving a 1A load with excellent line and load regulation. It requires a minimum number of external components, this regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2595 series operates at a switching frequency of 150kHz, thus allowing smaller-sized filter components than what would be needed with lower-frequency switching regulators. A standard series of inductors are available from several different manufacturers optimized for use with the LM2595 series. This feature greatly simplifies the design of switch-mode power supplies. Other features include a ±4% tolerance on output voltage under specified input voltage and output load conditions and ±15% on the oscillator frequency. External shutdown is included, featuring typically 85µA stand-by current.

.

Requires only 4 external components

.

Excellent line and load regulation specifications

.

TTL Shutdown capability

.

High efficiency

.

Uses readily available standard inductors

.

Thermal shutdown and current-limit protection

.

85µA Typically low power standby mode
