LM2576 / LM2576HV系列SIMPLE SWITCHER® 3A降压型稳压器 LM2576/LM2576HV Series SIMPLE SWITCHER® 3A Step-Down Voltage Regulator

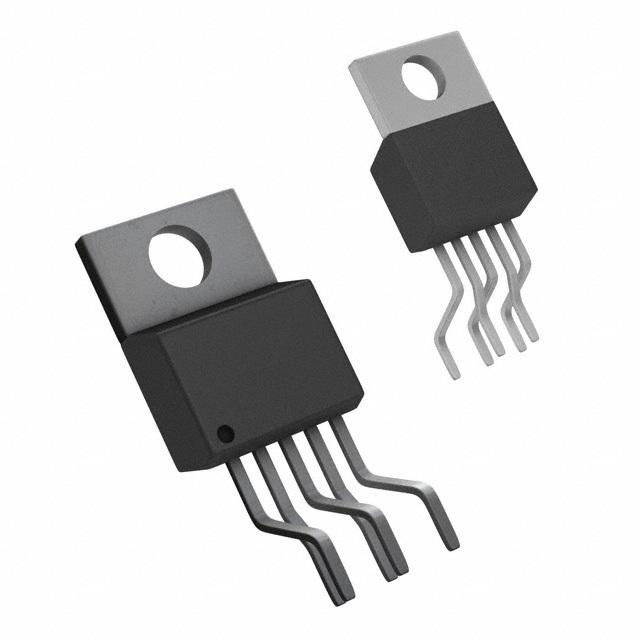

降压 开关稳压器 IC 正 固定 12V 1 输出 3A TO-220-5 成形引线
得捷:
IC REG BUCK 12V 3A TO220-5
立创商城:
降压型 Vin=4V~60V Vout=12V 3A
德州仪器TI:
SIMPLE SWITCHER® 4V to 60V, 3A Low Component Count Step-Down Regulator
艾睿:
Adjust the voltage level of your devices with this inverting and step down LM2576HVT-12/LF03 DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. This will operate at a minimum voltage of 4 V and a maximum voltage of 60 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 12 V, this is power management at its best. This converter is 88typ % efficient. It has a switching frequency of 58 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has an operating temperature range of -40 °C to 125 °C.
安富利:
Conv DC-DC Single Inv/Step Down 4V to 60V 5-Pin5+Tab TO-220 Rail
Verical:
Conv DC-DC 4V to 60V Inv/Step Down Single-Out 12V 3A 5-Pin5+Tab TO-220 Tube
DeviceMart:
IC REG BUCK 12V 3A TO220-5
输出接口数 1
输出电压 12 V
输出电流 3 A
静态电流 5.00 mA
调节输出数 1
开关频率 58 kHz
拓扑结构 Buck
开关电流 5.8 A
输入电压Max 60 V
输入电压Min 4 V
输出电压Min 12 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Min 7 V
输入电压 60 V
安装方式 Through Hole
引脚数 5

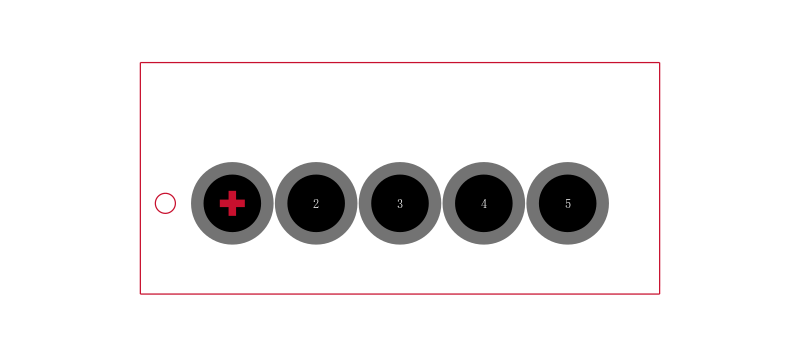

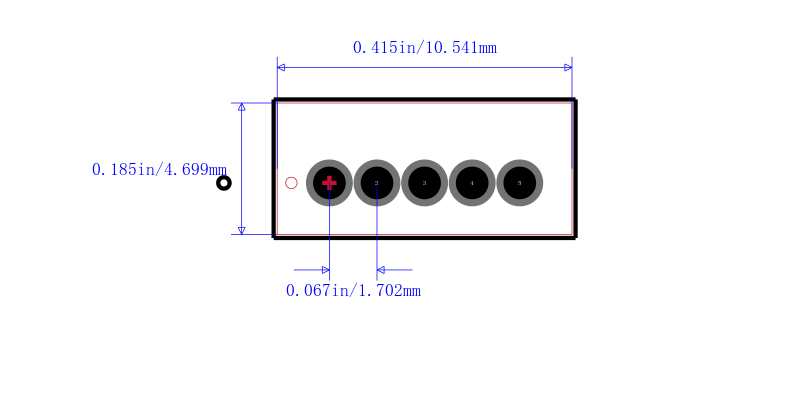

封装 TO-220-5
封装 TO-220-5
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
