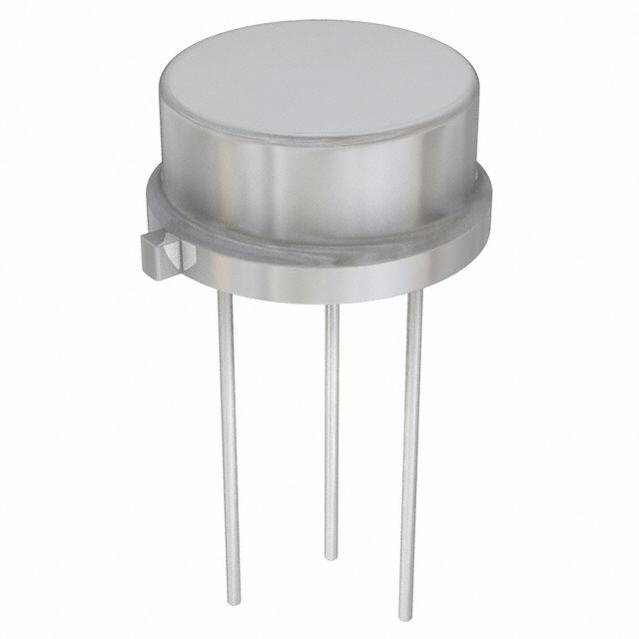

V-Ref Precision 10V 10mA 3Pin TO-39
DESCRIPTION
The LT®1031 is a precision 10V reference with ultralow drift and noise, extremely good long term stability, and almost total immunity to input voltage variations. The reference output will both source and sink up to 10mA and can be used as a shunt regulator two terminal Zener with the same precision characteristics as the three terminal connection. Special care has been taken to minimize thermal regulation effects and temperature induced hysteresis.
FEATURES
Pin Compatible with LH0070 and AD581Ultralow Drift—5ppm/°C Max Slope
Trimmed Output Voltage
Operates in Series or Shunt Mode
Output Sinks and Sources in Series Mode
Very Low Noise < 1ppmP-P0.1Hz to 10Hz
> 100dB Ripple Rejection
Minimum Input Voltage of 11V
APPLICATIONS
A-to-D and D-to-A Converters
Precision Regulators
Digital Voltmeters
lnertial Navigation Systems
Precision Scales
Portable Reference Standard
容差 ±0.2 %
输入电压DC 40.0V max
输出电压 10 V
输出电流 10 mA
通道数 1
静态电流 1.70 µA
输入电压Max 40 V
输出电流Max 10 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±0.2 %
输入电压 ≤40 V
安装方式 Through Hole
引脚数 3
封装 TO-39
高度 4.7 mm
封装 TO-39
工作温度 -55℃ ~ 125℃
温度系数 ±25 ppm/℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
