特殊功能芯片, 超级电容充电器, 1.71V至5.5V输入, QFN-24
The is a bidirectional buck-boost DC to DC regulator with capacitor charger and balancer in 24 pin QFN package. Its wide 0.1V to 5.5V capacitor/battery voltage and 1.8V to 5.25V system backup voltage ranges make it well suited to wide variety of backup applications using super capacitors or batteries. A proprietary low noise switching algorithm optimizes efficiency with capacitor/battery voltages that are above, below or equal to system output voltage. The LTC3110 can autonomously perform transition from charge to backup mode or switch modes based on an external command. Pin selectable burst mode operation reduces standby current and improves light load efficiency which combined with 1µA shutdown current make the LTC3110 ideally suited for backup applications. The device also includes voltage supervisors for direction control and end of charge, general purpose comparator with open collector output for interfacing with microcontroller.
电源电压DC 1.71V min
输出接口数 1
输出电压 0.1V ~ 5.5V
针脚数 24
开关频率 1500 khz
开关电流 6 a
输入电压Max 5.25 V
输入电压Min 1.71 V
输出电流Max 2 a
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.71 V
安装方式 Surface Mount
引脚数 24

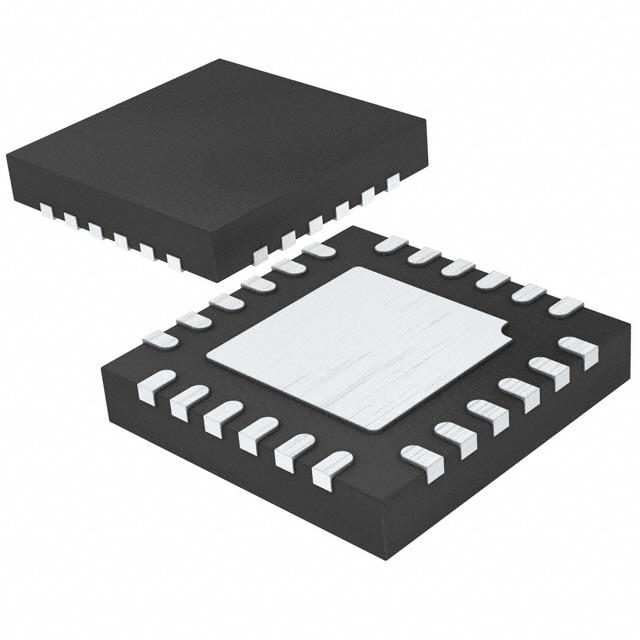

封装 QFN-24
封装 QFN-24
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Each
制造应用 Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3110EUF#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3110IUF#PBF 凌力尔特 | 完全替代 | LTC3110EUF#PBF和LTC3110IUF#PBF的区别 |
LTC3110EUF#TRPBF 凌力尔特 | 完全替代 | LTC3110EUF#PBF和LTC3110EUF#TRPBF的区别 |
