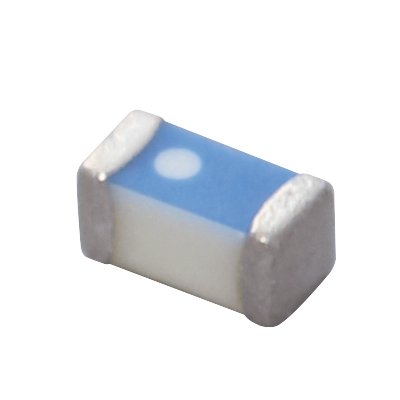

LQP03TN2N1B02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

无屏蔽 厚膜 器 150 毫欧最大 0201（0603 公制）

得捷:
FIXED IND 2.1NH 600MA 150MOHM SM

立创商城:
2.1nH ±0.1nH 150mΩ

艾睿:
This rf chip LQP03TN2N1B02D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 150m Ohm. It has an inductance of 2.1n H. This device utilizes thin film technology. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 11G Hz.

安富利:
Ind RF Chip Thin Film 2.1nH 0.1nH 500MHz 14Q-Factor 600mA 0201 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 2.1nH 0.1nH 500MHz 14Q-Factor 600mA 150mOhm DCR 0201 T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0021uH 0.1nH 500MHz 14Q-Factor 0.6A 0.15Ohm DCR 0201 T/R
