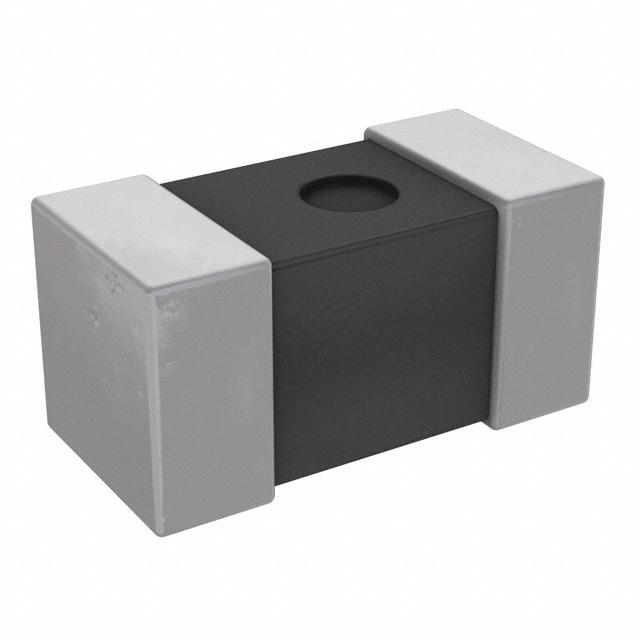

LQP03TN18NH02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

得捷:
FIXED IND 18NH 200MA 800MOHM SMD

立创商城:
18nH ±3% 800mΩ

艾睿:
Save valuable space on a PCB with this rf chip LQP03TN18NH02D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 18n H. This device utilizes thin film technology. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 800m Ohm. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 2.2G Hz. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. It has a tolerance of 3%.

安富利:
Ind RF Chip Thin Film 18nH 3% 500MHz 12Q-Factor 200mA 0201 Paper T/R

富昌:
FIXED IND 18NH 200MA 800 MOHM

Verical:
Inductor RF Chip Unshielded Thin Film 0.018uH 3% 500MHz 12Q-Factor Non Magnetic 0.2A 0.8Ohm DCR 0201 T/R

儒卓力:
**LQP03TN 18nH 200mA 3% TFT **

Win Source:
FIXED IND 18NH 200MA 800 MOHM
