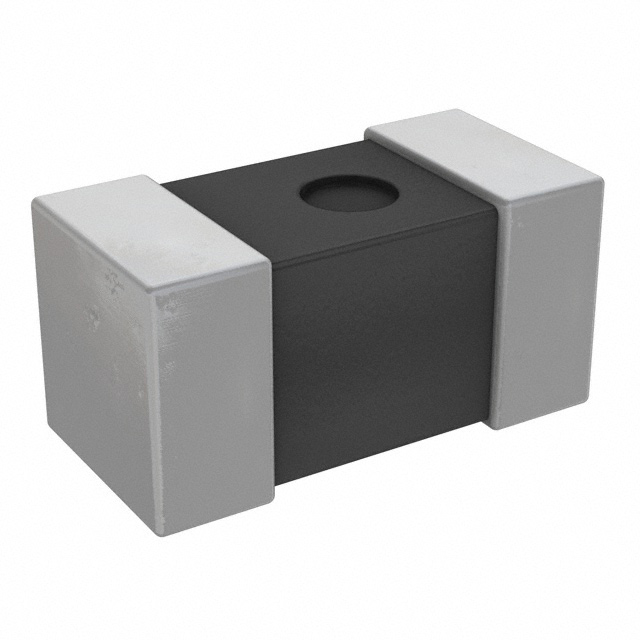

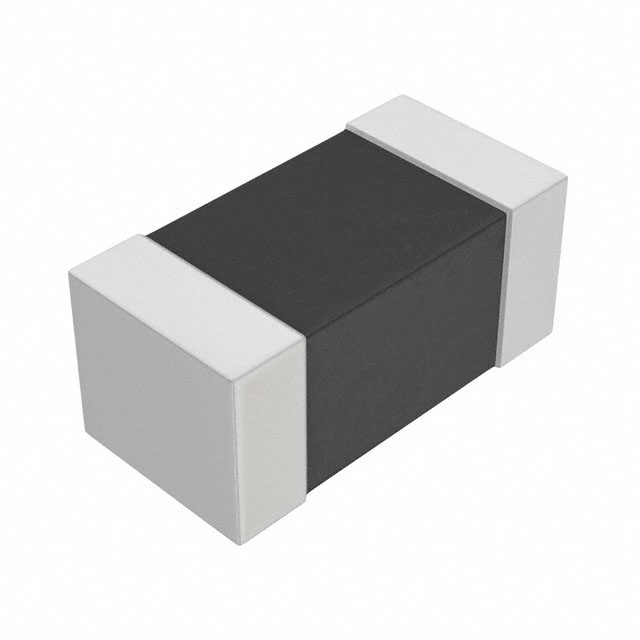

LQP03TN1N2C02D

片式电感器（片状线圈），高频薄膜型 Chip Inductor Chip Coil for High Frequency Film Type

固定器

得捷:
FIXED IND 1.2NH 750MA 100MOHM SM

立创商城:
1.2nH ±0.2nH 100mΩ

艾睿:
This rf chip LQP03TN1N2C02D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 1.2n H. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This device is made with thin film technology. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 100m Ohm. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 17G Hz.

Chip1Stop:
Inductor RF Chip Thin Film 1.2nH 0.2nH 500MHz 14Q-Factor 750mA 100mOhm DCR 0201 T/R

Verical:
Inductor RF Chip Unshielded Thick Film 0.0012uH 0.2nH 500MHz 14Q-Factor 0.75A 0.1Ohm DCR 0201 T/R

儒卓力:
**LQP03TN 1,2nH 750mA 0,2nH TFT **

Win Source:
FIXED IND 1.2NH 750MA 100 MOHM
