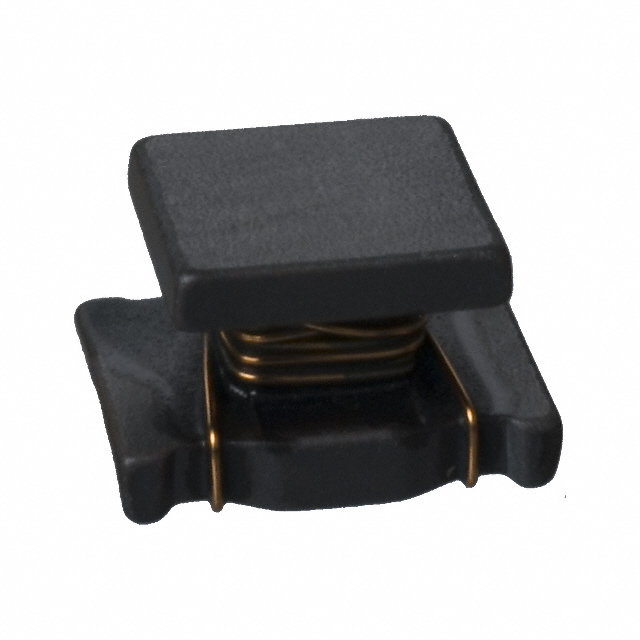

片式电感器(片状线圈)一般用绕线型LQH43M / LQH43N系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH43M/LQH43N Series
120µH Unshielded Wirewound Inductor 150mA 3Ohm Max 1812 4532 Metric
得捷:
FIXED IND 120UH 150MA 3 OHM SMD
立创商城:
120uH ±5% 3Ω
艾睿:
Inductor General Purpose Chip Unshielded Wirewound 120uH 5% 1MHz 40Q-Factor Ferrite 150mA 3Ohm DCR 1812 T/R
安富利:
Ind General Purpose Chip Unshielded Wirewound 120uH 5% 1MHz 40Q-Factor Ferrite 150mA 1812 Embossed T/R
Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 120uH 5% 1MHz 40Q-Factor Ferrite 150mA 3Ohm DCR 1812 T/R
Win Source:
120μH Unshielded Wirewound Inductor 150mA 3 Ohm Max 1812 4532 Metric
额定电流 150 mA
容差 ±5 %
电感 120 μH
自谐频率 6.2 MHz
产品系列 LQH
电感公差 ±5 %
测试频率 1 MHz
电阻DC) ≤3 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 3 Ω
安装方式 Surface Mount
封装公制 4532
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 2.6 mm
封装公制 4532
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
