LM4040DIX3-2.5+T

电压参考分流 -固定, 2.5V参考, ± 20ppm/°C, SC-70-3

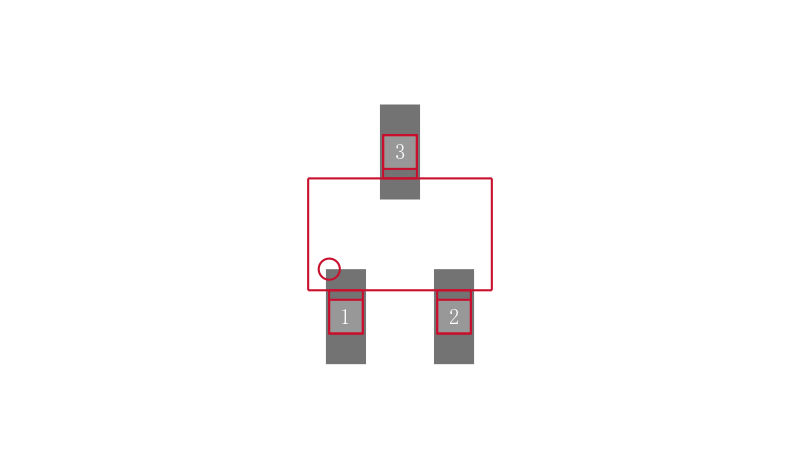

The is an improved precision micropower shunt voltage reference in 3 pin SC-70 package. This two terminal shunt mode band gap voltage reference is ideal for space critical applications. The laser trimmed resistors ensure precise initial accuracy of 1% with ±20ppm/°C temperature coefficient IR = 10mA. The LM4040D has 45µA minimum shunt operating current capability with low dynamic impedance which ensures stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents. This device does not require an external stabilizing capacitor while ensuring stability with any capacitive load.

.

Fixed reverse breakdown voltage of 2.5V

.

Operating temperature range from -40°C to 85°C

.

Low wideband output noise of 35µVrms 10Hz to 10KHz, IR=100µA

.

Reverse breakdown voltage tolerance of ±20mV

.

Reverse dynamic impedance of 0.3ohm IR = 1mA, f = 120Hz, IAC = 0.1IR
