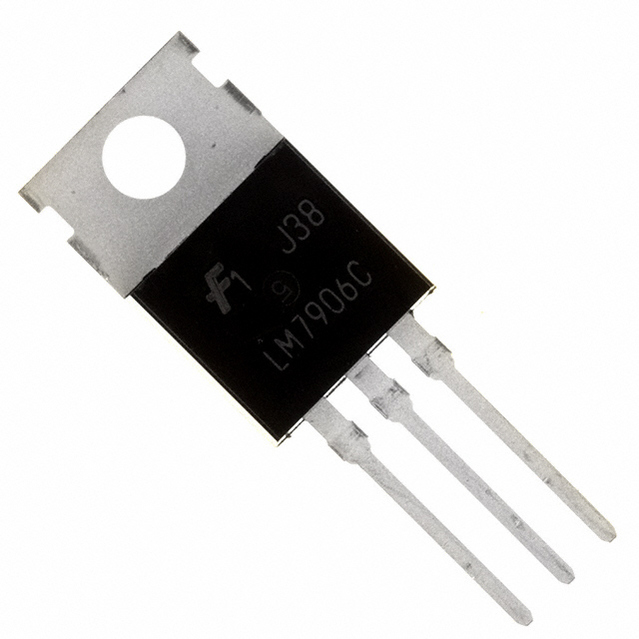

LM7906CT

3端子1A负稳压器 3-Terminal 1A Negative Voltage Regulator

3-TERMINAL 1A NEGATIVE VOLTAGE REGULATORS

The LM79XX series of three-terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.

FEATURES

· Output Current in Excess of 1A

· Output Voltages of -5, -6, -8, -12, -15, -18, -24V

· Internal Thermal Overload Protection

· Short Circuit Protection

· Output Transistor Safe-Area Compensation
