LM2736XMKX

LM2736薄型SOT 750毫安负载降压型DC -DC稳压器 LM2736 Thin SOT 750mA Load Step-Down DC-DC Regulator

Description

The LM2736 regulator is a monolithic, high frequency, PWM step-down DC/DC converter in a 6-pin Thin SOT package. It provides all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area.

With a minimum of external components and online design support through WEBENCH®, the LM2736 is easy to use. The ability to drive 750 mA loads with an internal 350 mΩ NMOS switch using state-of-the-art 0.5 µm BiCMOS technology results in the best power density available. The world class control circuitry allows for on-times as low as 13 ns, thus supporting exceptionally high frequency conversion over the entire 3 V to 18 V input operating range down to the minimum output voltage of 1.25 V. Switching frequency is internally set to 550 kHz LM2736Y or 1.6 MHz LM2736X, allowing the use of extremely small surface mount inductors and chip capacitors.

Features

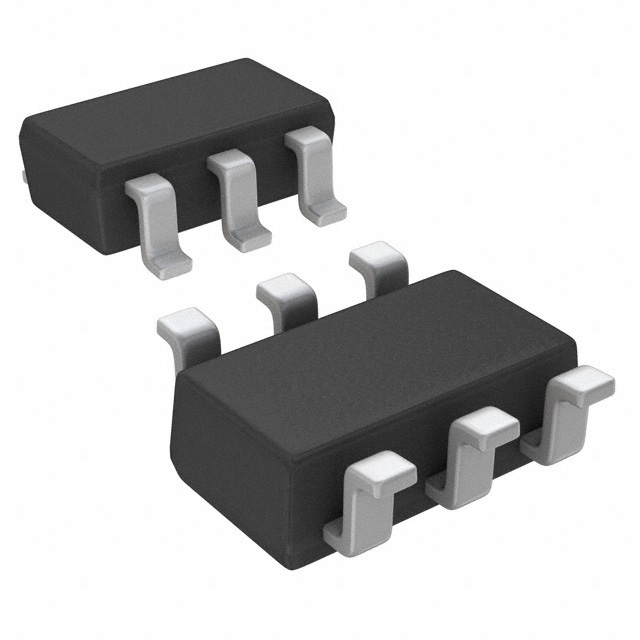

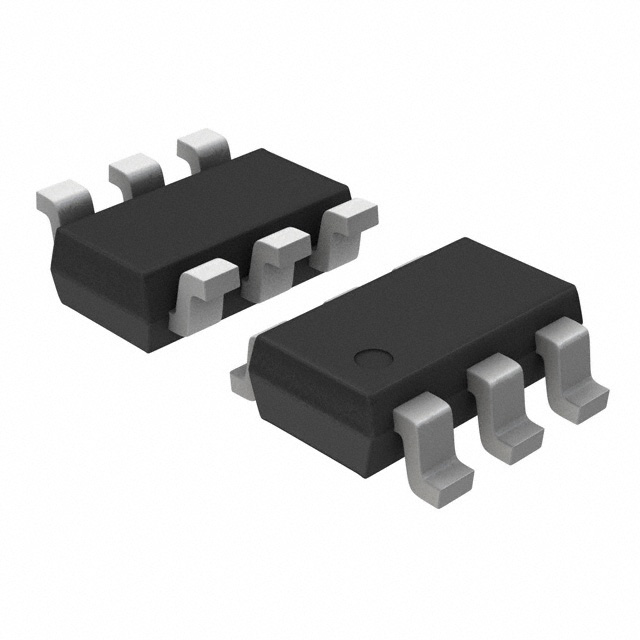

• Thin SOT-6 Package

• 3.0 V to 18 V Input Voltage Range

• 1.25 V to 16 V Output Voltage Range

• 750 mA Output Current

• 550 kHz LM2736Y and 1.6 MHz LM2736X Switching Frequencies

• 350 mΩ NMOS Switch

• 30 nA Shutdown Current

• 1.25 V, 2% Internal Voltage Reference

• Internal Soft-Start

• Current-Mode, PWM Operation

• WEBENCH® Online Design Tool

• Thermal Shutdown

Applications

• Local Point of Load Regulation

• Core Power in HDDs

• Set-Top Boxes

• Battery Powered Devices

• USB Powered Devices

• DSL Modems

• Notebook Computers
