0201
固定器
艾睿:

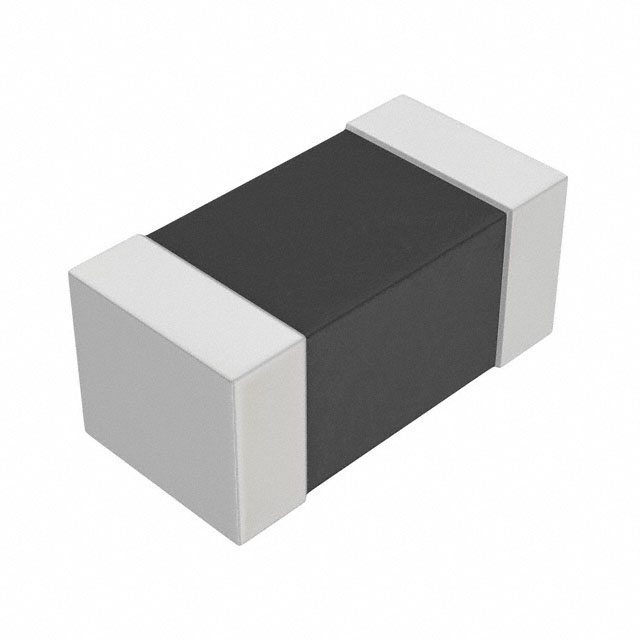

This rf chip LQP03TN8N2H00D surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 8.2n H. This SMD inductor has a maximum DC current of 220m A with a maximum resistance of 860m Ohm. This product is 0.65 mm long, 0.35 mm tall and 0.35 mm deep. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 5.5G Hz. It has a tolerance of 3%. This device is made with thin film technology.
Chip1Stop:
Inductor RF Chip Thin Film 8.2nH 3% 500MHz 13Q-Factor 220mA 860mOhm DCR 0201 T/R
Verical:
Inductor RF Chip Unshielded Thin Film 0.0082uH 3% 500MHz 13Q-Factor Non Magnetic 0.22A 0.86Ohm DCR 0201 T/R
