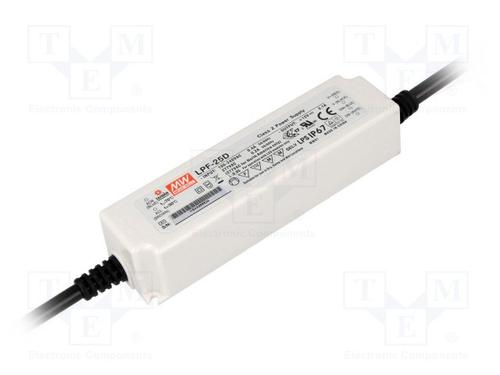

LED Driver CC, CV 25W 1.67A Linear 8.25-15VDC 90-305VAC PFC PWM, Resistance, 1-10V Dimming IP67 Plastic Enclosure
1.67A 8.25 ~ 15V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 输出
得捷:
LED DRVR CC AC/DC 8.25-15V 1.67A
艾睿:
AC/DC Power Supply Single-OUT 15V 1.67A 25.05W
Jameco:
25 Watt Single Output Switching Power Supply
安富利:
LED DRVR Module 1-CH PWM IP67 15V 1.67A
Chip1Stop:
AC/DC Power Supply Single-OUT 15V 1.67A 25.05W
TME:
Pwr sup.unit: switched-mode; LED; 25.05W; 15VDC; 8.25÷15VDC; 1.67A
Electro Sonic:
AC/DC LED Pwr Sply - Const Curr/Volt - 25.05W - Fixd: 15 Vdc @ 1,670mA - Dim: 1-10Vdc/PWM/Resist
CDI:
LED Driver CC, CV 25W 1.67A Linear 8.25-15Vdc 90-305Vac PFC PWM, Resistance, 1-10V Dimming IP67 Plastic Enclosure
额定功率 25.05 W
输出接口数 1
输出电压 15 V
输出电流 1.67 A
通道数 1
输出功率 25.05 W
输入电压DC Max 431 V
输入电压DC Min 127 v
输入电压AC Max 305 v
输入电压AC Min 90 v
输出电压Max 15 V
输出电压Min 8.25 V
输出电流Max 1670 mA
输入电流Min 0.4 A
输出功率Max 25.05 W
工作温度Max 70 ℃
工作温度Min -35 ℃
电源电压 90.305VAC, 127.431VDC
输入电压 90V ~ 305V
安装方式 Chassis
引脚数 6
封装 Plastic Enclosure
长度 148 mm
宽度 40 mm
高度 32 mm
封装 Plastic Enclosure
重量 360 g
工作温度 -35℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
