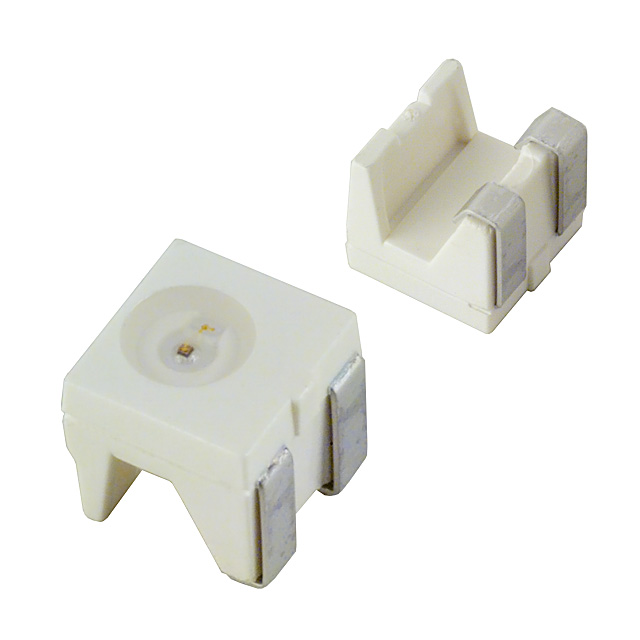

LTA67C-S2U1-35-Z

OSRAM  LTA67C-S2U1-35-Z  发光二极管, 超级 SIDELED®, 绿色, SMD, 2.4mm, 20 mA, 3.5 V, 525 nm

The is a true-green Hyper SIDE® Enhanced Optical Power LED with 120° viewing angle. It produces more light due to higher optical efficiency and extremely wide viewing angle. Ideal for backlighting and coupling in light guides. InGa technology LED is suitable for surface-mount assembly method. IR reflow and TTW soldering methods are used. It is complies with MSL Level 2 according to JEDEC J-STD-020D.01.

.

13lm/W Optical efficiency

.

Luminous intensity and wavelength grouping parameter

.

2kV According to JESD22-A114-B ESD withstand voltage

ESD sensitive device, take proper precaution while handling the device.
