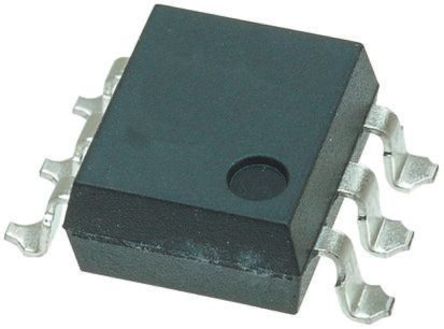

FAIRCHILD SEMICONDUCTOR MOC3083SR2M 光电耦合器, 三端双向可控硅输出, 过零, 表面安装DIP, 6 引脚, 4.2 kV, 过零, 800 V
The is a 6-pin TRIAC Driver Optocoupler consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. It is designed for use with a TRIAC in the interface of logic systems to equipment powered from 240VAC lines, such as solid-state relays, industrial controls and solenoids.
- .
- Zero voltage crossing to minimize conducted and radiated line noise
- .
- 850V Maximum working insulation voltage
- .
- 6000V High allowable overvoltage
输入电压DC 1.30 V
输出电压 800 V
电路数 1
通道数 1
针脚数 6
正向电压 1.3 V
输入电流 60.0 mA
耗散功率 0.25 W
隔离电压 4.2 kV
保持电流 500 µA
正向电流 60 mA
输入电压Max 1.5 V
输出电压Max 560 VAC
输入电流Min 60 mA
击穿电压 6 V
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
输入电压 1.3 V
安装方式 Surface Mount
引脚数 6
封装 DIP-6
高度 3.53 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOC3083SR2M Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MOC3083SVM 飞兆/仙童 | 类似代替 | MOC3083SR2M和MOC3083SVM的区别 |
MOC3083SR2-M 飞兆/仙童 | 类似代替 | MOC3083SR2M和MOC3083SR2-M的区别 |
