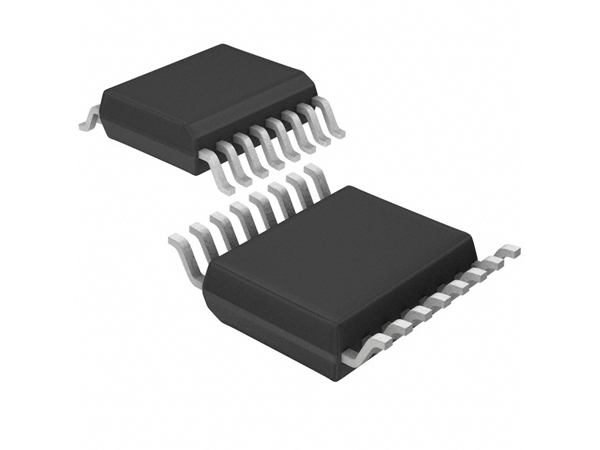

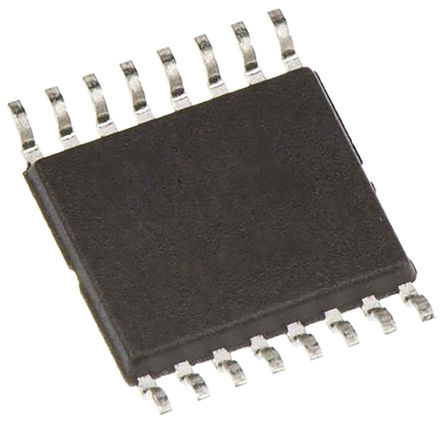

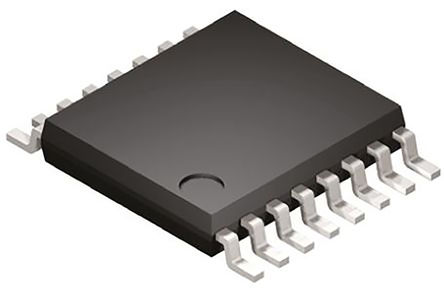

MM74HC595MTCX

FAIRCHILD SEMICONDUCTOR  MM74HC595MTCX  移位寄存器, HC系列, 串行至并行, 1元件, TSSOP, 16 引脚, 2 V, 6 V

The is a 8-bit high-speed Shift Register with output latches. It utilizes advanced silicon-gate CMOS technology. This device possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. This device contains an eight-bit serial-in, parallel-out, shift register that feeds an eight-bit D-type storage register. The storage register has eight 3-state outputs. Separate clocks are provided for both the shift register and the storage register. The shift register has a direct overriding clear, serial input and serial output standard pins for cascading. Both the shift register and storage register use positive-edge triggered clocks. If both clocks are connected together, the shift register state is one clock pulse ahead of the storage register. The 74HC logic family is speed, function and pin-out compatible with the standard 74LS logic family.

.

Cascadable

.

Shift register has direct clear

.

80µA Maximum low quiescent current

.

1µA Maximum low input current

.

8-bit Serial-in, parallel-out shift register with storage

.

DC to 30MHz guaranteed shift frequency
