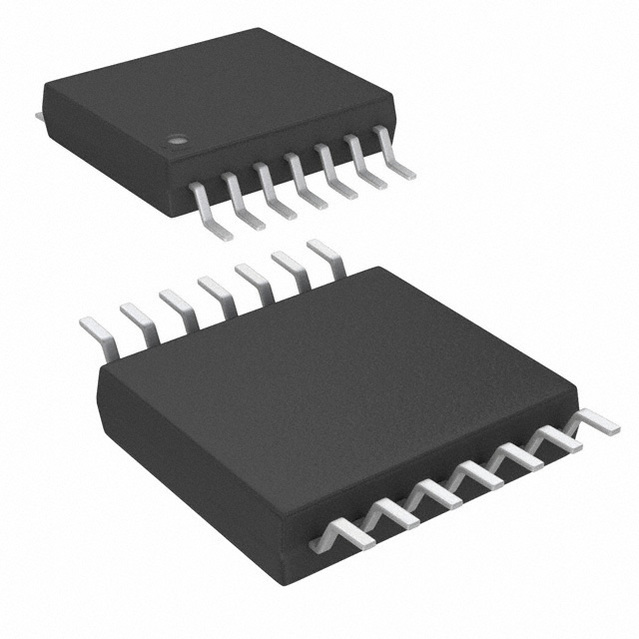

MSP430L092SPWR

TEXAS INSTRUMENTS  MSP430L092SPWR  微控制器, 16位, 混合信号, MSP430, 4 MHz, 2 KB, 2 KB, 14 引脚, TSSOP

The is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 5µs. The device configurations with two 16-bit timer, 8-bit A/D converter, 8-bit D/A converter and 11 general-purpose I/O pins.

.

1MHz Internal trimmable high-frequency clock

.

20kHz Internal low-frequency clock source

.

External clock input

.

16-bit Timer0_A3 with 3 Capture/Compare registers

.

16-bit Timer1_A3 with 3 Capture/Compare registers

.

Programmable comparator COMP

.

Supply voltage monitor SVM

.

Temperature sensor

.

Internal reference voltage source

.

VOL Better than 0.15V at 2.5mA

.

VOH Better than VCC -0.15V at 1mA

.

Timer0 PWM signal available on all ports

.

Timer1 PWM signal available on all ports

.

ULV brownout circuit BOR

.

ULV RAM retention voltage below BOR level

.

32-bit Watchdog timer WDT-A

.

Bootstrap loader in MSP430L092 development/prototyping device

.

Full 4-wire JTAG debug interface

.

45µA/MHz 1.3V Active mode AM power consumption
