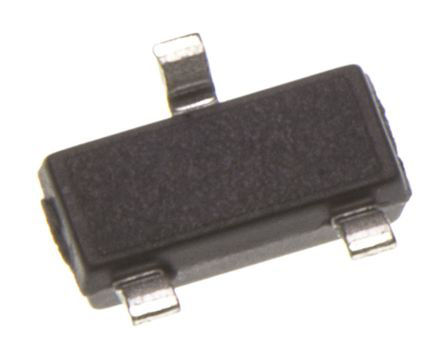

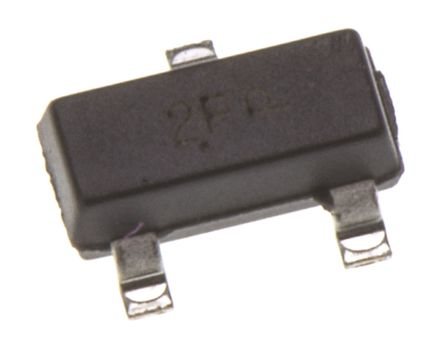

ON SEMICONDUCTOR MMBT2907ALT1G 单晶体管 双极, 通用, PNP, -60 V, 200 MHz, 225 mW, -600 mA, 200 hFE
小信号 PNP ,
### 标准
带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。
立创商城:
PNP 双极晶体管
得捷:
TRANS PNP 60V 0.6A SOT23-3
欧时:
小信号 PNP 晶体管,ON Semiconductor### 标准带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。### 双极性晶体管,On SemiconductorON Semiconductor 的各种双极晶体管,包括以下类别:小信号晶体管 功率晶体管 双晶体管 复合晶体管对 高电压晶体管 射频晶体管 双极/FET 晶体管
艾睿:
The three terminals of this PNP MMBT2907ALT1G GP BJT from ON Semiconductor give it the ability to be used as either an electronic switch or amplifier. This bipolar junction transistor&s;s maximum emitter base voltage is 5 V. Its maximum power dissipation is 300 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 5 V.
Allied Electronics:
Transistor; Bipolar; Si; PNP; General Purpose; VCEO -60VDC; IC -600mA; PD 225mW; hFE 50
Jameco:
Trans General Purpose BJT PNP 60 Volt 1.2A 3-Pin SOT-23 Tape and Reel
安富利:
Trans GP BJT PNP 60V 0.6A 3-Pin SOT-23 T/R
Chip1Stop:
Trans GP BJT PNP 60V 0.6A 300mW Automotive 3-Pin SOT-23 T/R
TME:
Transistor: PNP; bipolar; 60V; 0.6A; 225mW; SOT23
Verical:
Trans GP BJT PNP 60V 0.6A Automotive 3-Pin SOT-23 T/R
Newark:
Bipolar BJT Single Transistor, General Purpose, PNP, -60 V, 200 MHz, 300 mW, -600 mA, 300 hFE
Win Source:
TRANS PNP 60V 0.6A SOT23
频率 200 MHz
额定电压DC -60.0 V
额定电流 -600 mA
额定功率 300 mW
针脚数 3
极性 PNP
耗散功率 225 mW
输入电容 30 pF
上升时间 40 ns
击穿电压集电极-发射极 60 V
集电极最大允许电流 0.6A
最小电流放大倍数hFE 100 @150mA, 10V
额定功率Max 300 mW
直流电流增益hFE 200
下降时间 30 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 3.04 mm
宽度 1.3 mm
高度 0.94 mm
封装 SOT-23-3
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Industrial, Power Management, 工业, Industrial, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MMBT2907ALT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMBT4403LT1G 安森美 | 类似代替 | MMBT2907ALT1G和MMBT4403LT1G的区别 |
MMBT2907ALT3G 安森美 | 类似代替 | MMBT2907ALT1G和MMBT2907ALT3G的区别 |
MPS2907ARLRAG 安森美 | 类似代替 | MMBT2907ALT1G和MPS2907ARLRAG的区别 |
