MLH150PSB06B

MLH150PSB06B图片1
MLH150PSB06B图片2
MLH150PSB06B图片3
MLH150PSB06B图片4
MLH150PSB06B图片5
MLH150PSB06B图片6
MLH150PSB06B图片7
MLH150PSB06B图片8
MLH150PSB06B图片9

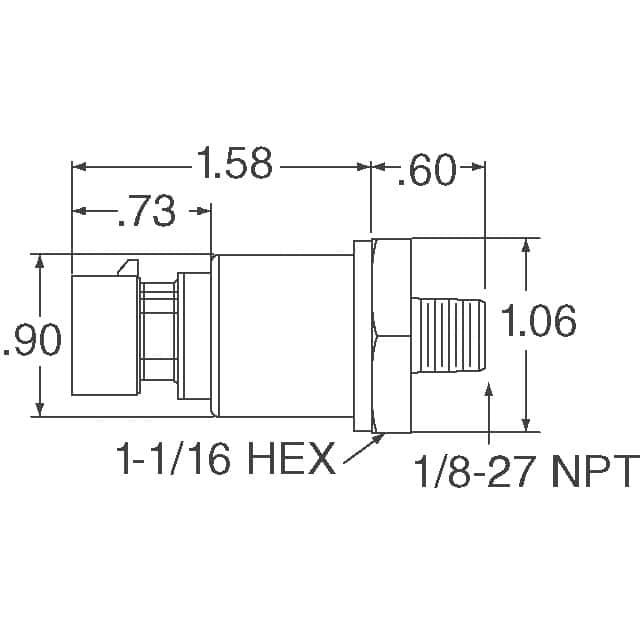

MLH150PSB06B图片10
MLH150PSB06B概述

Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 PSI to 100PSI, Units in PSI, Measurement Sealed Gage psi4, Electrical Termination DIN 43650-C, 8mm-male, Pressure Connector 1/8in-27 NPT, Output Type 4mA to 20mA, Diaphragm Seal - Advanced Thick Film ATF.

密封压力计 压力 150PSI(1034.21kPa) 公型 - 1/8"(3.18mm)NPT 4mA ~ 20mA 圆柱型,金属


得捷:
SENSOR SEALED GAUGE 0-150 PSI


艾睿:
Pressure Sensor 0psi to 150psi Sealed Gage 3-Pin


Chip1Stop:
Pressure Sensor 0psi to 150psi Sealed Gage 3-Pin


Verical:
Industrial Pressure Sensor 0psi to 150psi Sealed Gage Medical 3-Pin


Newark:
# HONEYWELL  MLH150PSB06B  Pressure Sensor, Heavy Duty, Current, 150 psi, Sealed Gauge, 30 V, NPT


MASTER:
Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 PSI to 150 PSI, Units in PSI, Measurement Sealed Gage psi4, Electrical Termination Delphi Metri-Pack 150, Pressure Connector 1/8 in-27 NPT, Output Type 4 mA to 20 mA, Diaphragm Seal - Ad


Powell:
Sensors, Pressure Transducers, Stainless Steel Media Isolated


Electro Sonic:
Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 PSI to 150 PSI, Units in PSI, Measurement Sealed Gage ...


MLH150PSB06B中文资料参数规格
技术参数

额定电压DC 30.0 V

输出电流 ≥4.00 mA

输出电流Max 20 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±0.25 %

额定电压 30 V

电源电压 9.5V ~ 30V

封装参数

引脚数 3

封装 Cylinder, Metal

外形尺寸

高度 55 mm

封装 Cylinder, Metal

物理参数

重量 57 g

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

制造应用 工业自动化

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

HTS代码 9026204000

数据手册

在线购买MLH150PSB06B
型号: MLH150PSB06B
描述:Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 PSI to 100PSI, Units in PSI, Measurement Sealed Gage psi4, Electrical Termination DIN 43650-C, 8mm-male, Pressure Connector 1/8in-27 NPT, Output Type 4mA to 20mA, Diaphragm Seal - Advanced Thick Film ATF.
